Original: $421.85
-70%$421.85
$126.56The Story

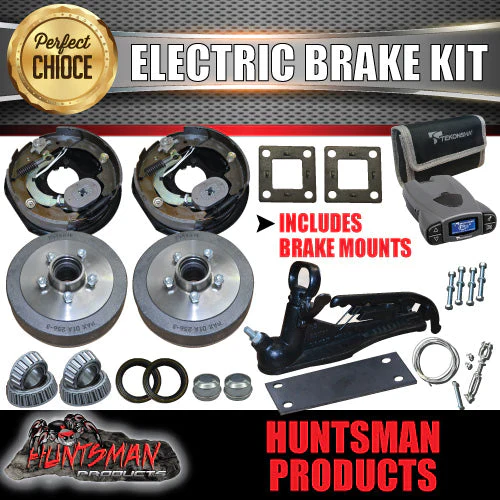

10" ELECTRIC DRUM BRAKE KIT
WITH P3 CONTROLLER AND FULL COUPLING KIT
FULL KIT INCLUDES
1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
2X 10" HUB DRUMS (AVAILABLE IN 6 STUD, 5 STUD 100 SERIES LANDCRUISER, 5 STUD FORD, 5 STUD COMMODORE, 5 STUD HQ OR 5 STUD HT) drums made from S.G casting (Much stronger than grey iron)
drums come with cups already inserted.
2X BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)
2X ELECTRIC BRAKE MOUNTS (PLEASE SPECIFY THICKNESS OF AXLE eg 39MM ROUND, 40MM SQUARE, 45MM SQUAREetc)
1X TEKONSHA P3 BRAKE CONTROLLER
1x 3500KG ELECTRIC 50MM BALL COUPLING WITH HANDBRAKE LEVER
4X HIGH TENSILE COUPLING BOLTS AND NYLOC NUTS
1X 4 HOLE BASE PLATE
1X 8 METRES HANDBRAKE CABLE (let us know if longer is required)
2X CABLE CLAMPS
INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):
BEARING STYLE: LM OR SLIMLINE (see options below)
STUD PATTERN: (see options below)
AXLE WIDTH
BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49
FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49
STUD PATTERN:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"
HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches
COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches
HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches
5 STUD LANDCRUISER
--- PCD: 5x150mm
--- Stud Thickness: 9/16" Inches
6 STUD LANDCRUISER
--- PCD: 6x139.7mm
--- Stud Thickness: 1/2" Inches
6 STUD D40/NP300
--- PCD: 6x114.3mm
--- Stud Thickness: 1/2" Inches
BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0
"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
10" ELECTRIC DRUM BRAKE KIT
WITH P3 CONTROLLER AND FULL COUPLING KIT
FULL KIT INCLUDES
1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
2X 10" HUB DRUMS (AVAILABLE IN 6 STUD, 5 STUD 100 SERIES LANDCRUISER, 5 STUD FORD, 5 STUD COMMODORE, 5 STUD HQ OR 5 STUD HT) drums made from S.G casting (Much stronger than grey iron)
drums come with cups already inserted.
2X BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)
2X ELECTRIC BRAKE MOUNTS (PLEASE SPECIFY THICKNESS OF AXLE eg 39MM ROUND, 40MM SQUARE, 45MM SQUAREetc)
1X TEKONSHA P3 BRAKE CONTROLLER
1x 3500KG ELECTRIC 50MM BALL COUPLING WITH HANDBRAKE LEVER
4X HIGH TENSILE COUPLING BOLTS AND NYLOC NUTS
1X 4 HOLE BASE PLATE
1X 8 METRES HANDBRAKE CABLE (let us know if longer is required)
2X CABLE CLAMPS
INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):
BEARING STYLE: LM OR SLIMLINE (see options below)
STUD PATTERN: (see options below)
AXLE WIDTH
BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49
FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49
STUD PATTERN:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"
HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches
COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches
HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches
5 STUD LANDCRUISER
--- PCD: 5x150mm
--- Stud Thickness: 9/16" Inches
6 STUD LANDCRUISER
--- PCD: 6x139.7mm
--- Stud Thickness: 1/2" Inches
6 STUD D40/NP300
--- PCD: 6x114.3mm
--- Stud Thickness: 1/2" Inches
BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0
"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
