12" Trailer Caravan Mechanical Disc Brake kit 6 Stud 6/139.7 PCD L/C Pattern

12" TRAILER DISC BRAKE KIT

STUD PATTERNS AVAILABLE
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)

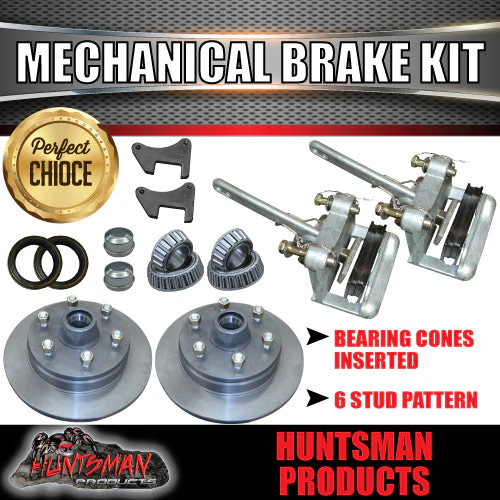

FULL KIT INCLUDES

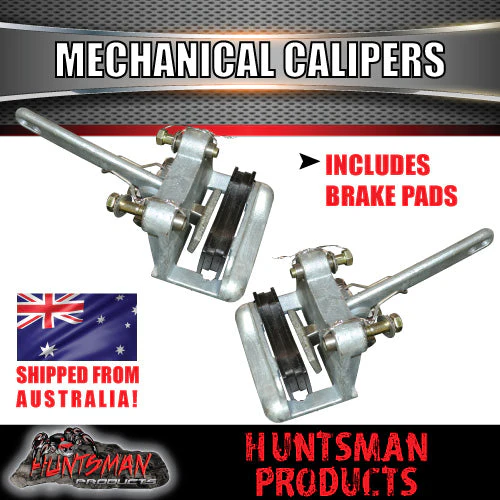

2X GALVANISED MECHANICAL BRAKE CALIPERS WITH MOUNTING BOLTS AND BRAKE PADS ALREADY INSERTED

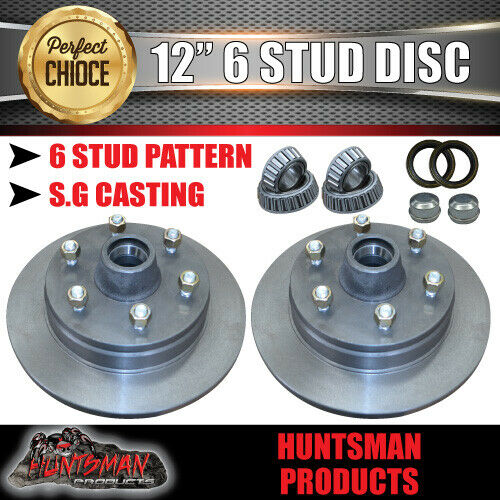

2X 12" NATURAL FINISH 6 STUD BRAKE DISCS 6/139.7 PCD WITH HOLDEN LM OR FORD S/L SIZE CUPS INSERTED. COMES WITH 1/2" WHEEL NUTS
2X LM OR SLIMLINE BEARING SETS WITH STEEL SEALS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X DUST SEALS, 2X DUST CAPS)

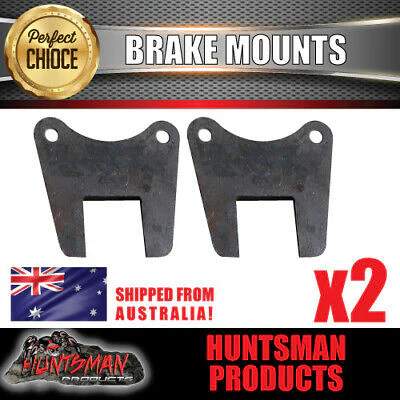

2X LARGE LANDCRUISER SIZE MECHANICAL DISC BRAKE FLANGES (available in 40mm square, 45mm square or 50mm square)
DISCS COME WITH BEARING CUPS INSERTED



BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0 (CLICK ON LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"



INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT)
BEARING STYLE (LM OR SL) SEE OPTIONS BELOW
WIDTH OF AXLE FOR DISC MOUNTS: 40MM SQUARE, 45MM SQUARE OR 50MM SQUARE

BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49
