12" Boat Trailer 6 Stud Hydraulic Disc Brake Kit. Japanese Bearings Stainless Pistons

HYDRAULIC DISC BRAKE KIT
TO SUIT 6 STUD LAND CRUISER PATTERN (12"discs)
KOYO Japanese Bearings

STUD PATTERNS AVAILABLE
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)

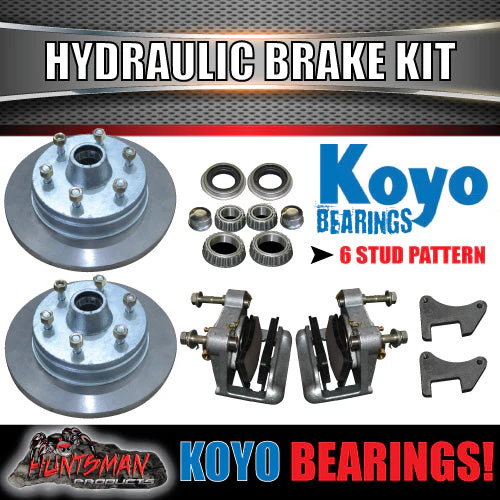

FULL KIT INCLUDES

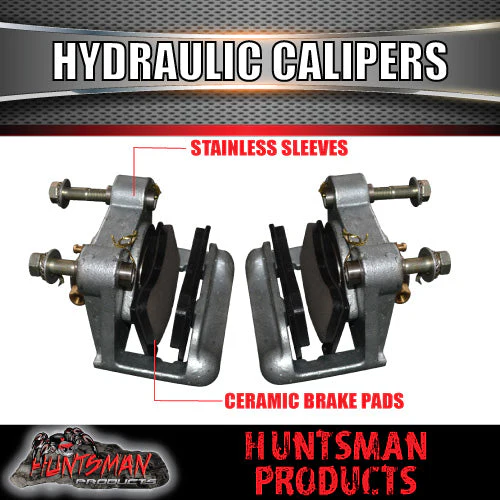

2X GALVANISED HYDRAULIC DISC BRAKE CALIPERS WITH STAINLESS STEEL PISTONS. COMES WITH MOUNT BOLTS AND WASHERS
4X HYDRAULIC DISC BRAKE PADS

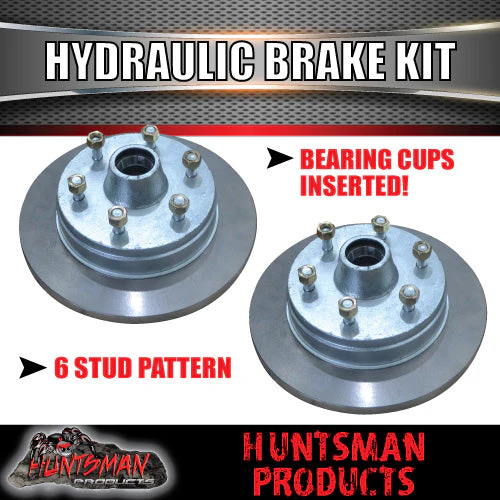

2 X GALVANISED DACROMET 12" LANDCRUISER 6 STUD DISC HUBS WITH CUPS INSERTED. COMES WITH 1/2' WHEEL NUTS

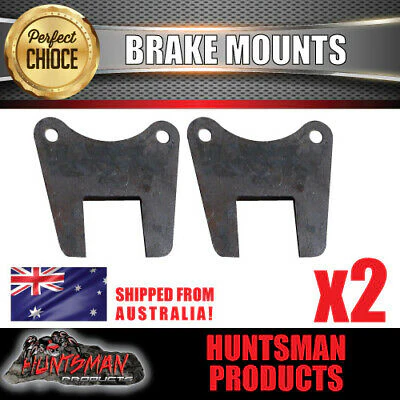

2X NATURAL FINISH MOUNTING PLATES WITH BOLTS (available in 40mm square, 45mm square or 50mm square)
2X JAPANESE KOYO BEARING SETS TO SUIT THE AXLE SPECS PROVIDED
(2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL BEARING CUPS, 2X MARINE SEALS, 2X DUST CAPS)



upgrade to the easy instillation hydraulic line setup.
12ft set up Item number: 180995030571 $105
16ft set up Item number: 171178278490 $115



INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT)
BEARING STYLE (LM OR SL) SEE OPTIONS BELOW
WIDTH OF AXLE FOR DISC MOUNTS: 40MM SQUARE, 45MM SQUARE OR 50MM SQUARE


BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49


STUD PATTERN:
6 STUD LANDCRUISER
--- PCD: 6x139.7mm
--- Stud Thickness: 1/2" Inches


DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
