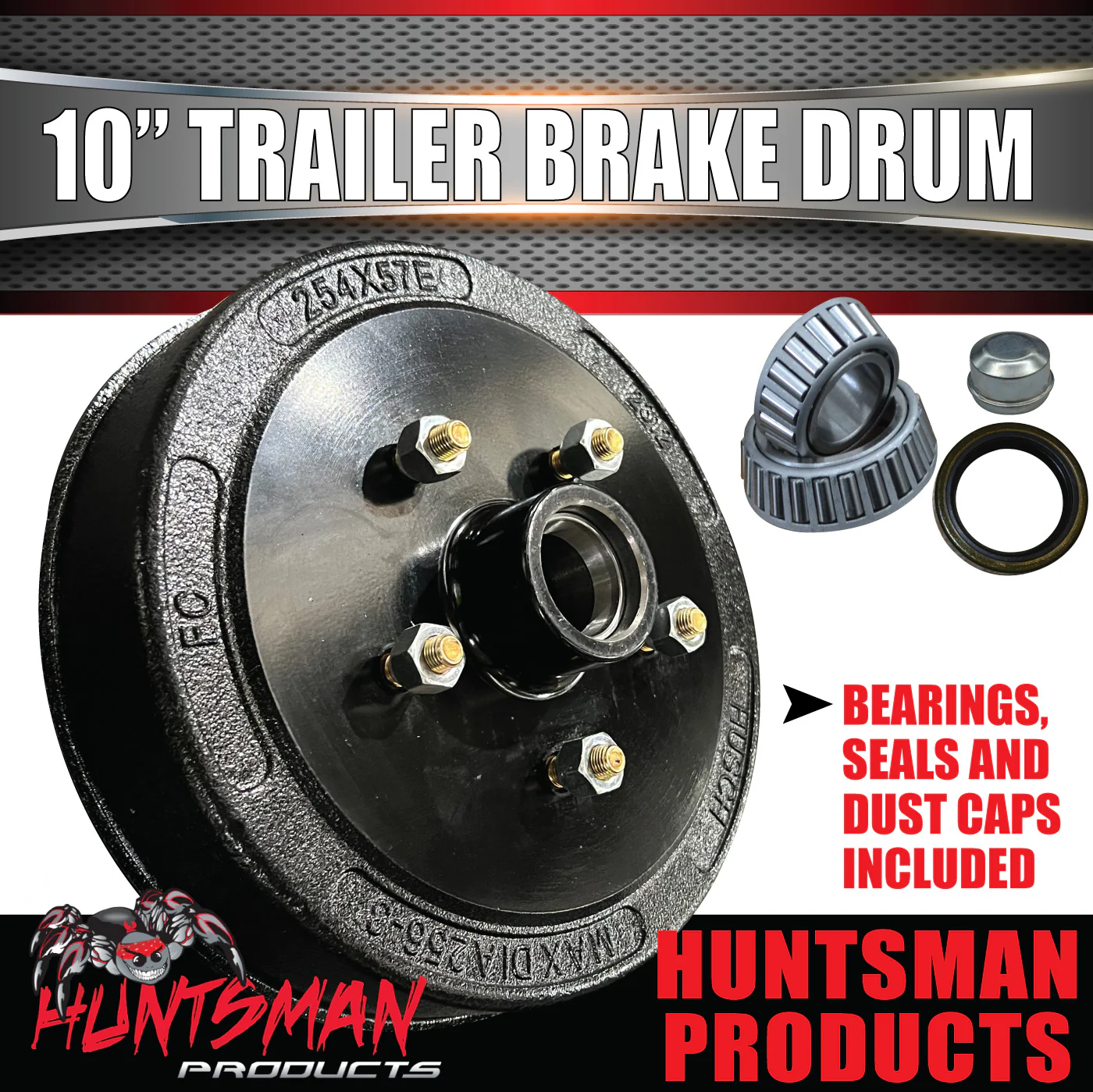

1x 10" Trailer Caravan Electric Drum Commodore Pattern 5/120 PCD & SL Slimline Bearing Set

1X 10" 5 STUD COMMODORE ELECTRIC BRAKED DRUM
SLIMLINE (FORD) SIZE BEARING KIT

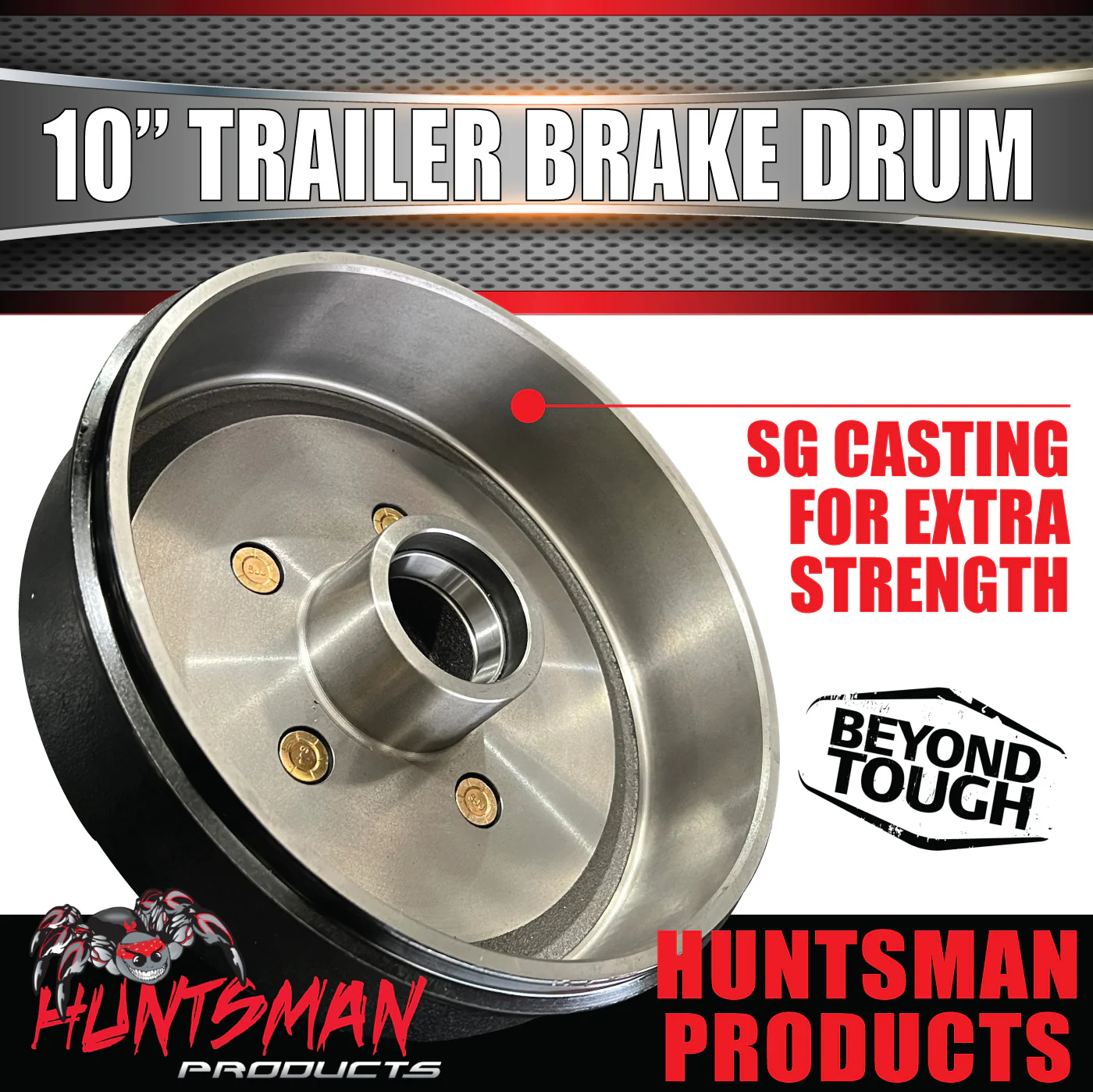

(SG casting. much stronger than grey iron casting)

1x 10" 5 STUD COMMODORE PATTERN STEEL DRUM WITH STUDS AND NUTS

PCD: 5/120

7/16" STUDS AND NUTS

DRUM DIAMETER: 254MM

MATERIAL: S.G CASTING

FINISH: BLACK PAINTED

70.53MM FROM CENTRE OF ONE STUD TO THE CENTRE OF THE NEXT STUD

SUITS AXLES: 45MM AND SOME 50MM

1X SLIMLINE BEARING SET

1X INNER BEARING ID:34.9MM (L68149)

1X OUTER BEARINGS ID:22MM (L12749)

1X OUTER BEARING CUP (already inserted)

1X INNER BEARING CUP (already inserted)

1X SLIMLINE REAR DUST SEAL

1X 45MM DUST CAP

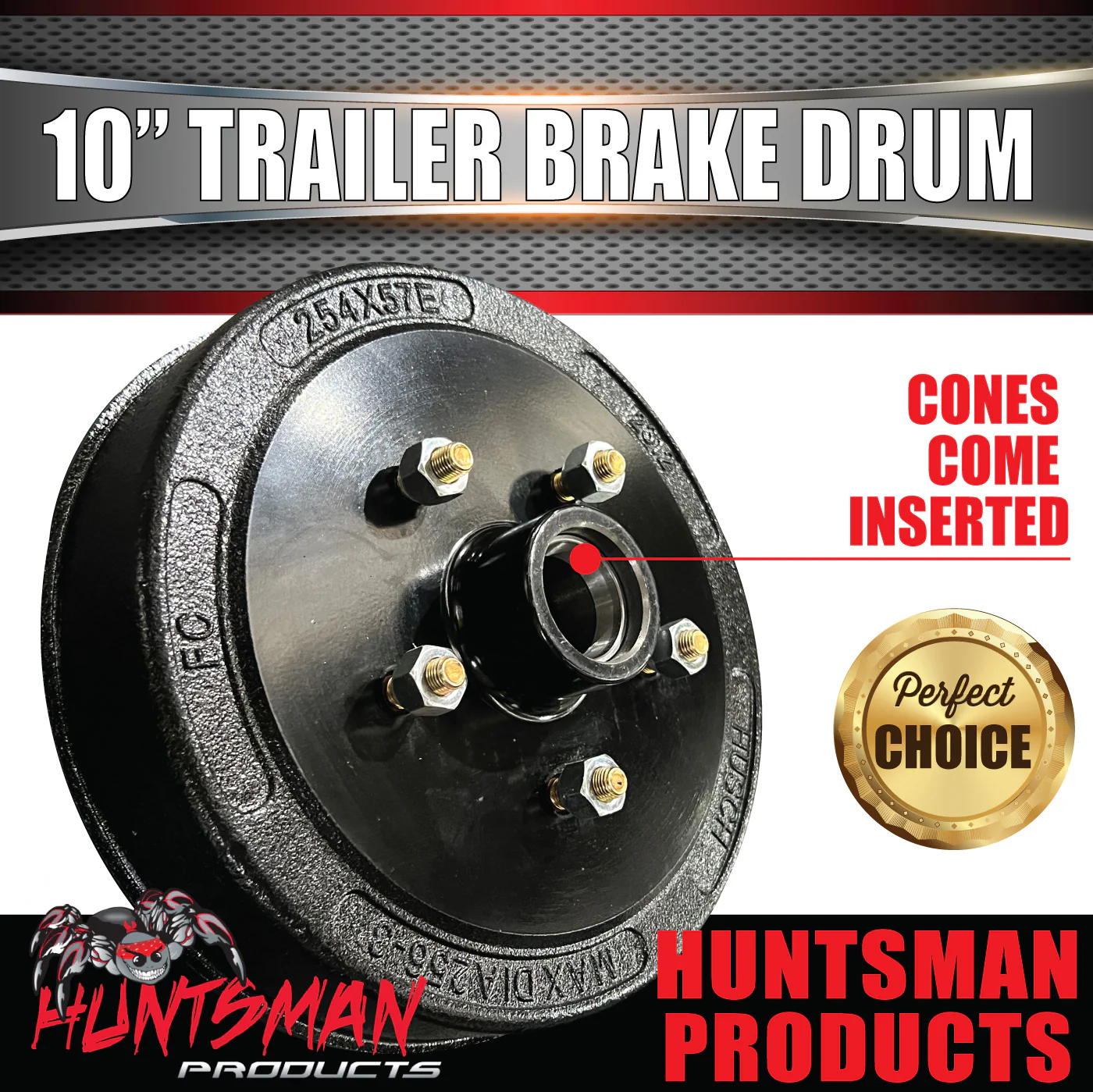

HUB COMES WITH CUPS INSERTED

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $25.0 (click on link below)

CLICK HERE TO UPGRADE TO JAPANESE KOYO BEARINGS
