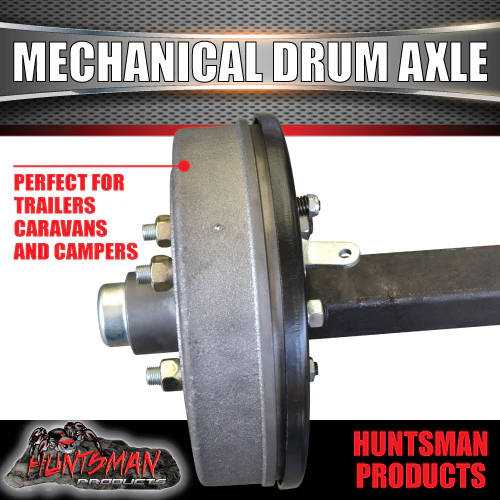

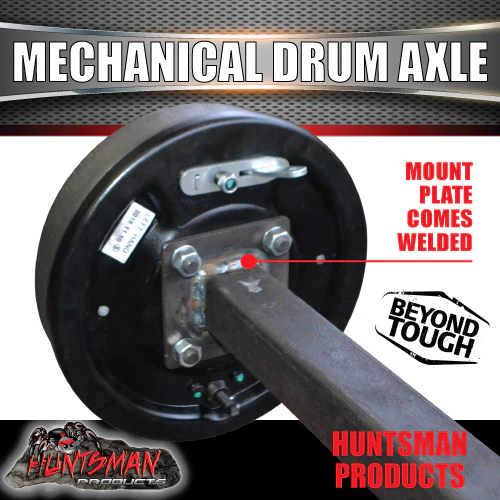

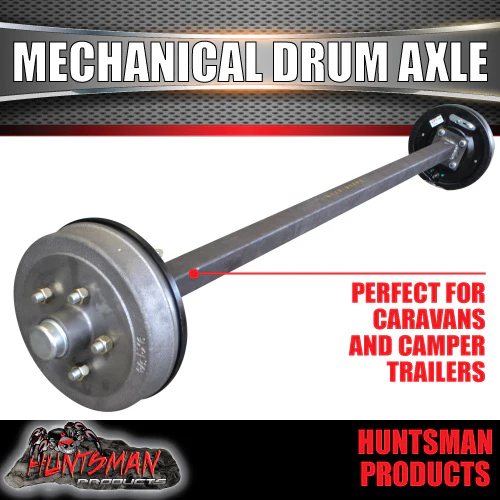

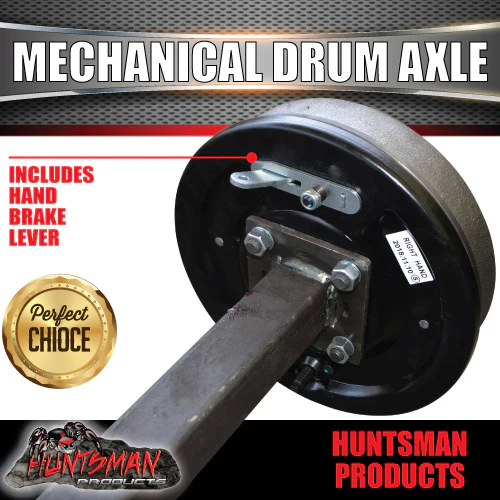

45mm Square Trailer Caravan Mechanical Drum Braked Axle. 1400Kg rated 64"-77"

45MM SQUARE SOLID COMPLETE MECHANICAL DRUM BRAKED AXLE
(1400KG RATED)
available axle lengths 64" - 77"

45MM SOLID AXLE
ASSEMBLED WITH SLIMLINE BEARINGS AND AUTO GREASE
S.G CASTING DRUMS (MUCH STRONGER THEN GREY IRON)

AVAILABLE LENGTHS
oal= over all length
hub face to hub face = oal -100mm
64" (1625oal)
65" (1650oal)
66" (1675oal)
67" (1700oal)
68"(1725oal)
69"(1755oal)
71"(1800oal)
73"(1855oal)
75"(1905oal)
77"(1955oal)

AVAILABLE PATTERNS
FORD 5 STUD (5/114.3 PCD, 1/2" STUDS AND NUTS)
HOLDEN HT 5 STUD (5/108 PCD, 7/16" STUDS AND NUTS)
HOLDEN HQ 5 STUD (5/120.65 PCD, 7/16" STUDS AND NUTS)
HOLDEN COMMODORE 5 STUD (5/120 PCD, 7/16" STUDS AND NUTS)
6 STUD LANDCRUISER PCD 6/139.7 (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD LANDCRUISER 5/150 (5/150 PCD, 9/16" STUDS AND NUTS)

SLIMLINE BEARINGS FITTED
INNER BEARINGS ID:34.9MM (L68149)
OUTER BEARINGS ID:22MM (L12710)

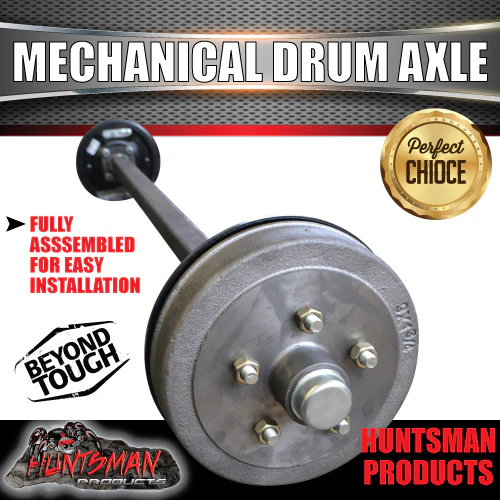

AXLE COMES COMPLETELY ASSEMBLED

THIS AXLE USED BY MANY TRAILER, CARAVAN AND CAMPER TRAILER MANUFACTURES AUSTRALIA WIDE.

EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE
JAPANESE MANUFACTURED BEARINGS $50 (CLICK ON THE LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
