2x 7 Leaf 45mm Eye & Slipper Springs with Hanger & U Bolt Kit 1350kg.

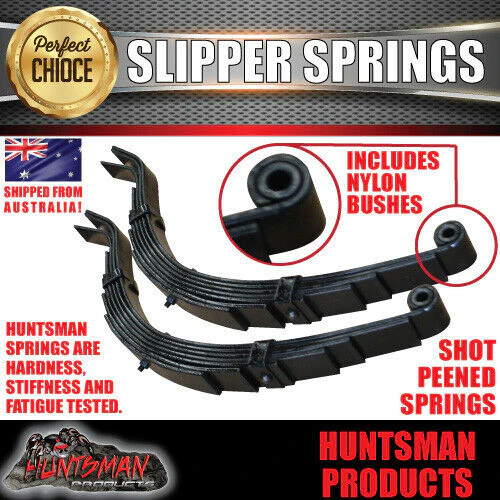

7 LEAF 1350KG SLIPPER SPRING SET
INCLUDING HANGER AND U BOLT KIT
Choice or 40mm, 45mm or 50mm U bolts

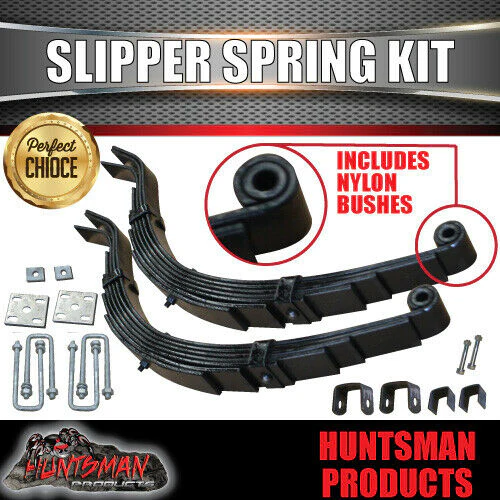

IN THIS KIT
2X 45MM X 6MM 7 LEAF BLACK FINISH SLIPPER SPRINGS

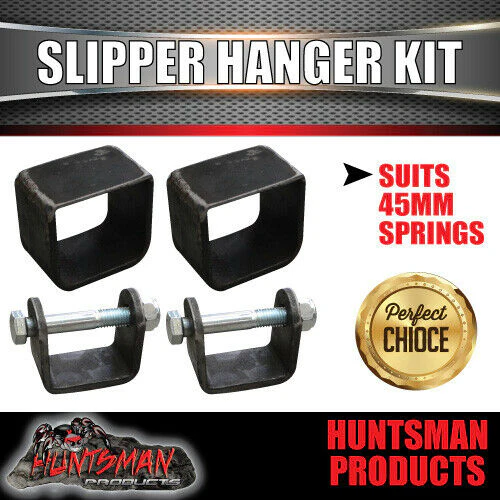

2X REAR HANGERS
2X FRONT EYE HANGERS
2X SLIPPER HANGER BOLTS WITH WASHERS AND NUTS
4X 40MM, 45MM OR 50MM SQUARE U BOLTS WITH SPRING WASHERS AND NUTS (1/2" BSW) ZINC FINISH
2X 8MM SLOTTED FISH PLATES
2X AXLE PADS
ON ORDERING PLEASE PROVIDE AXLE THICKNESS FOR U BOLT SIZE?


RATED: 1350KG PER PAIR
SPRING LENGTH: 780MM OVERALL
CENTRE OF EYE TO END OF SPRING LENGTH: 760MM
BUSH: NYLON BUSH INSERTED TO SUIT 1/2" BOLT
SPRING WIDTH: 45MM
LEAF THICKNESS: 6MM
(SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)
COMES WITH NYLON BUSHES ALREADY INSERTED


SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
