10" Boat Trailer Caravan Hydraulic Disc Brake Kit. Galvanised Dacromet

10" TRAILER HYDRAULIC DISC BRAKE KIT
STAINLESS STEEL PISTONS

STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) + $115 12" DISCS
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$115 12" DISCS

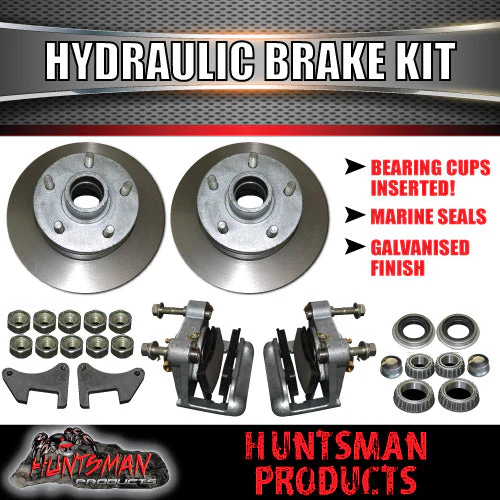

FULL KIT INCLUDES

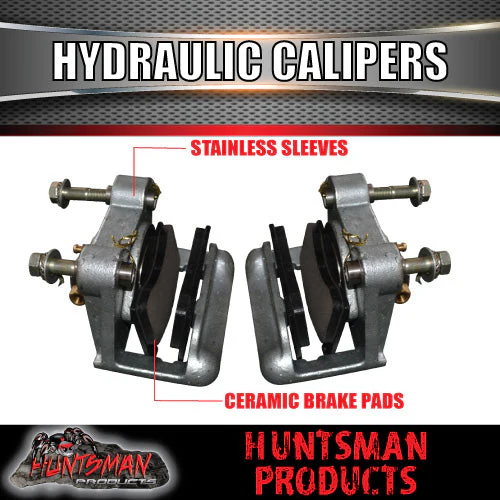

2X GALVANISED HYDRAULIC BRAKE CALIPERS WITH STAINLESS STEEL PISTONS. COMES WITH MOUNT BOLTS AND WASHERS
4X HYDRAULIC DISC BRAKE PADS

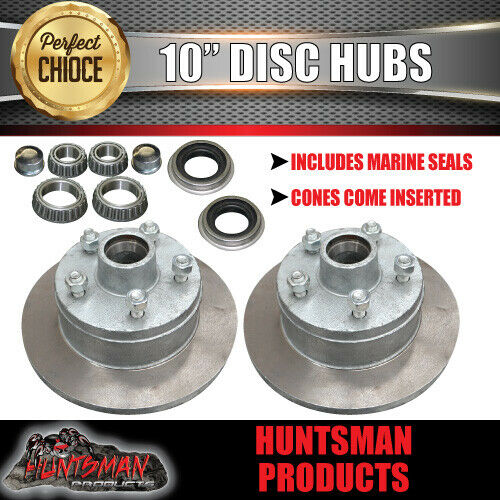

2 X GALVANISED DACROMET DISC HUBS WITH CUPS INSERTED. COMES WITH WHEEL NUTS

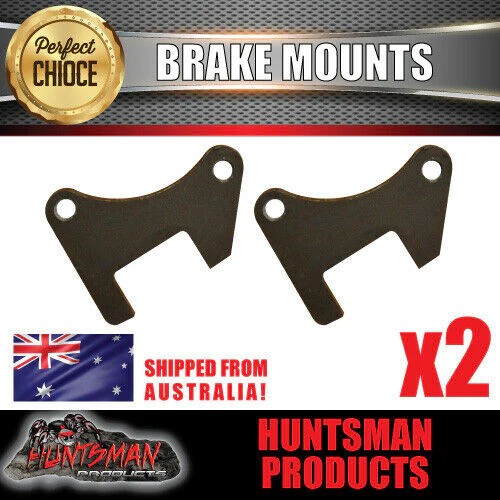

2X WELD ON DISC MOUNTS (available in 39mm round, 40mm square 45mm round, 45mm square)
2 X COMPLETE BEARING KITS. HOLDEN OR FORD SIZE INCLUDING MARINE SEALS AND DUST CAPS



OPTIONS AVAILABLE
UPGRADE TO JAPANESE BEARINGS $50 (click on link below)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"



12ft set up Item number: 180995030571 $105
16ft set up Item number: 171178278490 $115



INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):
BEARING STYLE: LM OR SLIMLINE (see options below)
STUD PATTERN: (see options below)
WIDTH OF AXLE: 39MM ROUND, 40MM SQUARE, 45MM ROUND OR 45MM SQUARE (45mm mounts can be used for 50mm axles)

BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49

STUD PATTERNS:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"

HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches

COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches

HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches

6 STUD LANDCRUISER
PCD: 6/139.7
Stud Thickness: 1/2"

5 Stud Landcruiser
PCD: 5/150
Stud Thickness: 9/16"

DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
