Boat Trailer Swivel Spare Wheel Holder Carrier Beach Launch Bracket + Hub SL Bearings.

Trailer Swivel Spare Wheel Boat Launch Bracket + hub and bearing kit
SLIMLINE 45mm Round Stub Axle (suited for ford bearings)

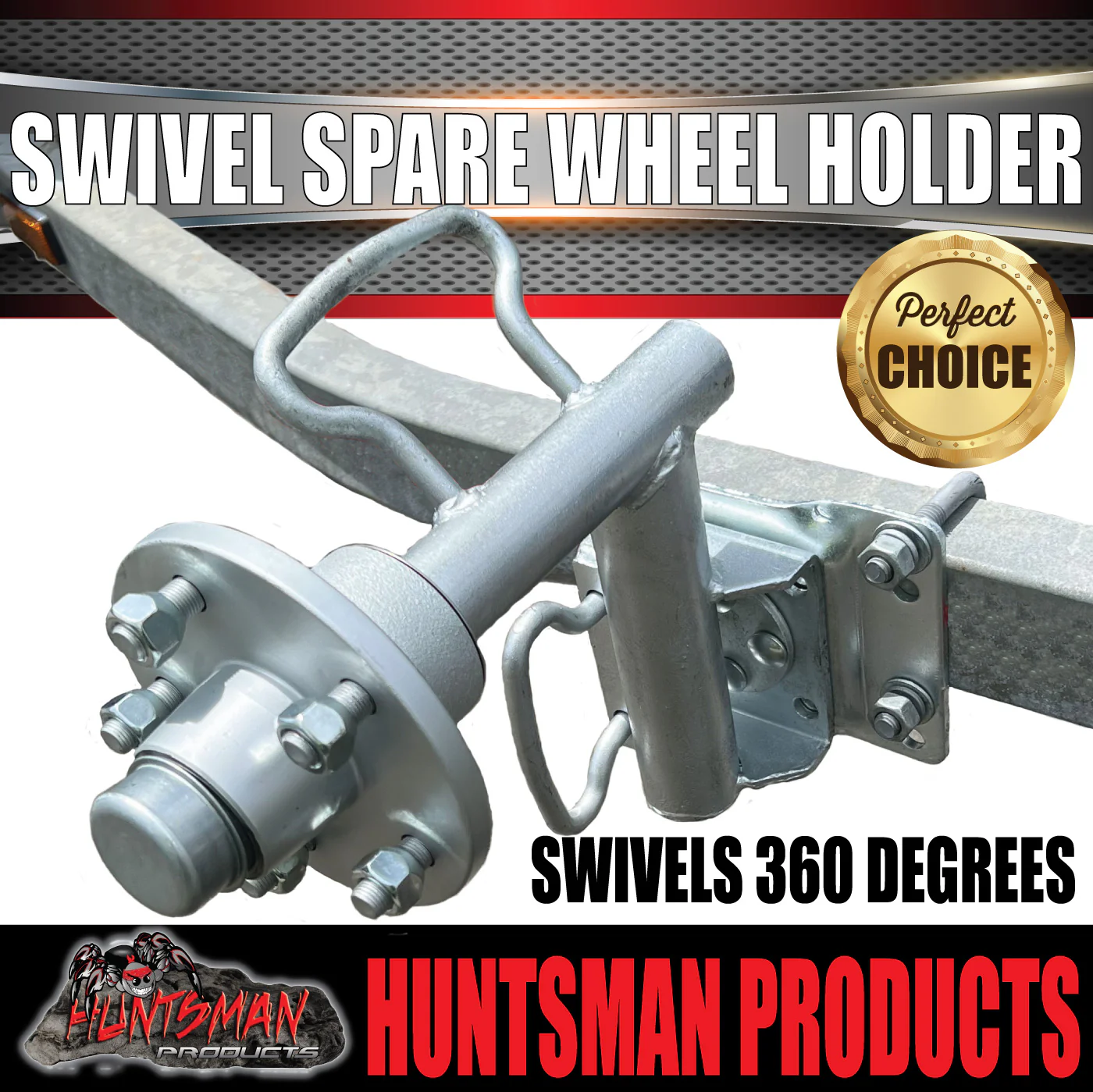

Swivels 360 Degrees


How Does The Spare Wheel Beach Launch Kit Work?
The Huntsman Products Rescue Kit gives a combination of a spare wheel holder, spare hub or disc with pre greased bearing kit (should a bearing collapse or fail) or a very handy swivel down dolly or jockey wheel using your spare tyre accross sand or soft grounds.


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) +$10
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$10

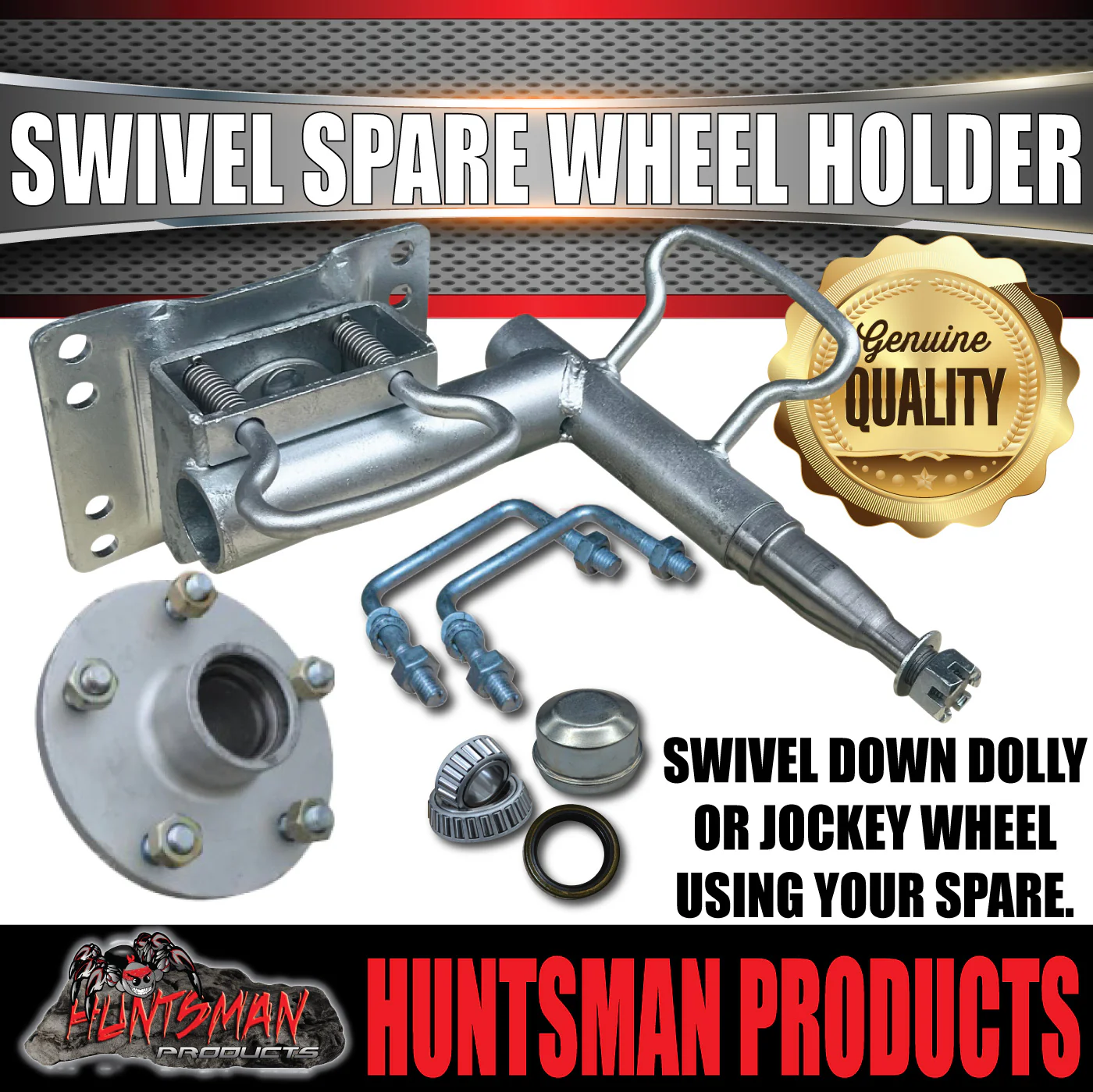

IN THIS KIT
1X GLAVANISED 45MM STUB AXLE INC CASTLE NUT AND SPRING PIN WELDED TO STEM
1X GALVANISED SPARE WHEEL STEM
2X GALVANISED U BOLT AND SUPPORT PLATE
1X GALVANISED LAZY HUB INC SLIMLINE BEARING KIT
ALL NUTS AND WASHERS SUPPLIED
1X INNER BEARINGS ID:34.9MM (L68149)
1XOUTER BEARINGS ID:22MM (L12710)
1X OUTER BEARING CUPS (already inserted)
1X INNER BEARING CUPS (already inserted)
1X SLIMLINE MARINE REAR SEALS
1X DUST CAPS

U BOLTS SUPPLIED ARE TO SUIT 100MM X 50MM FRAME WHICH CAN ALSO BE USED ON 75MM X 50MM FRAME
U BOLTS TO SUIT 50MM X 50MM CAN BE SUPPLIED (please request these if needed)

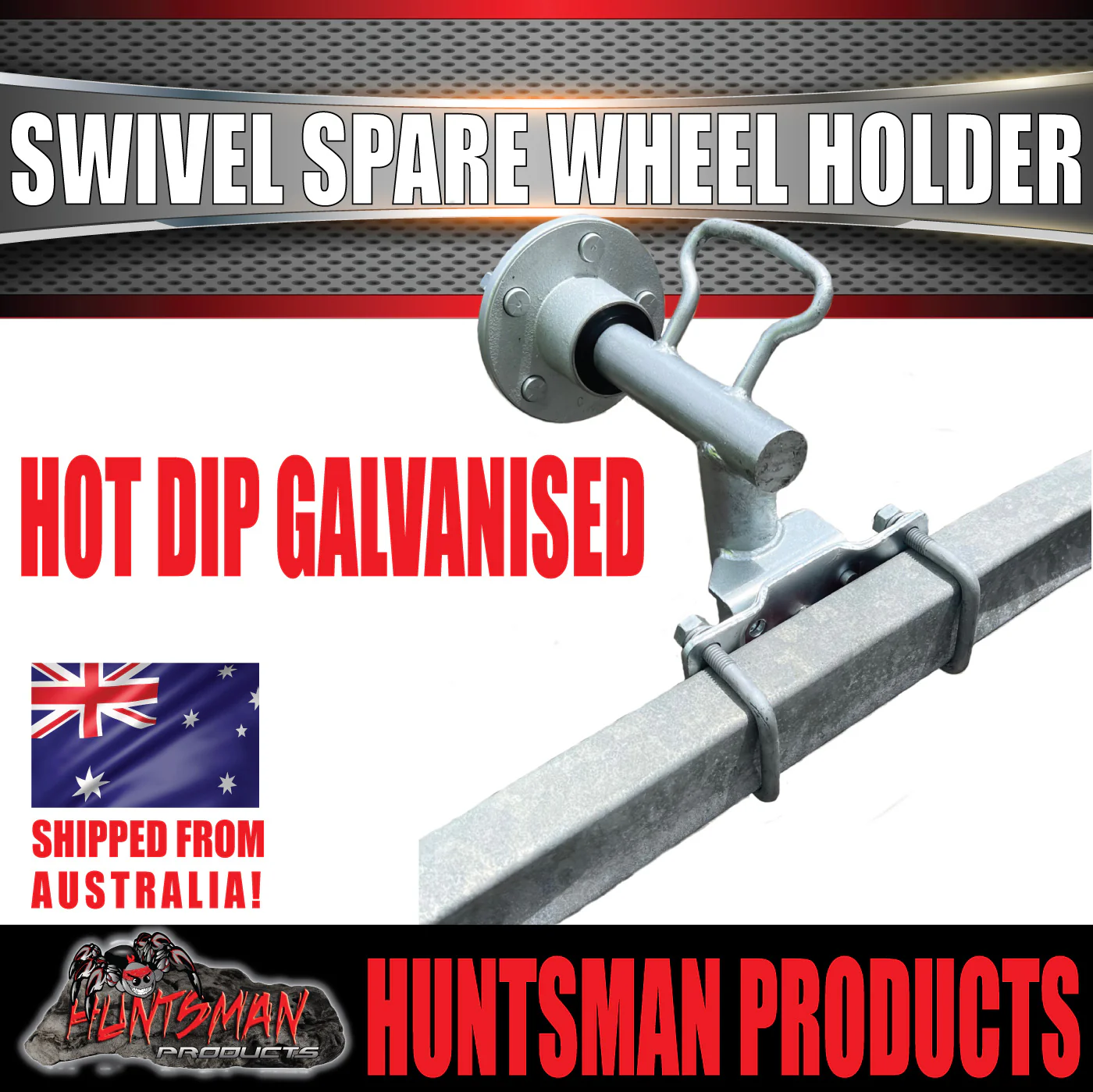

HOT DIP GALVANISED

Kit Does Not Come Assembled
Can be mounted in various positions including Draw Bar, A Frame and Winch posts
Can be suited for 50x50, 75x50, 100x50 RHS



BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $25.0 (click on link below)

CLICK HERE TO UPGRADE TO JAPANESE KOYO BEARINGS
