x2 2000kg Machined Trailer Stub Axles To Sleeve in 50mm x 5mm RHS + elec Mounts

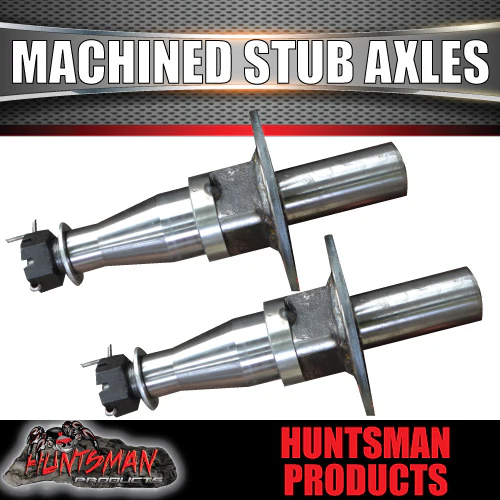

2X 50MM SQUARE SOLID STUB AXLES

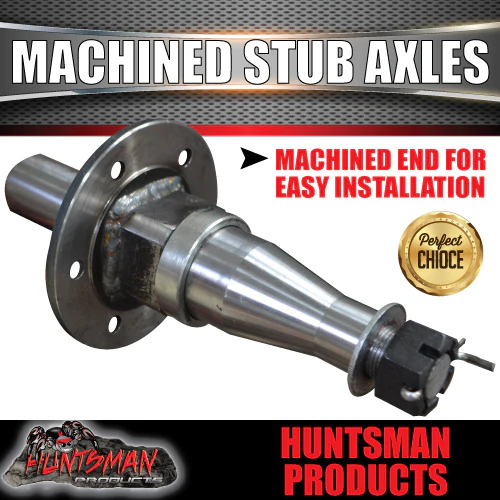

MACHINED TO SLEEVE INTO 50MM X 50MM RHS
WITH 12" ELECTRIC BRAKE MOUNTS WELDED

280MM OVERALL LENGTH
88MM ROUND TO SLEEVE SECTION
50MM FLAT 50MM X 50MM SURFACE
COMES WITH RING TAC WELDED TO ALLOW SEAL FOR 30210 BEARING

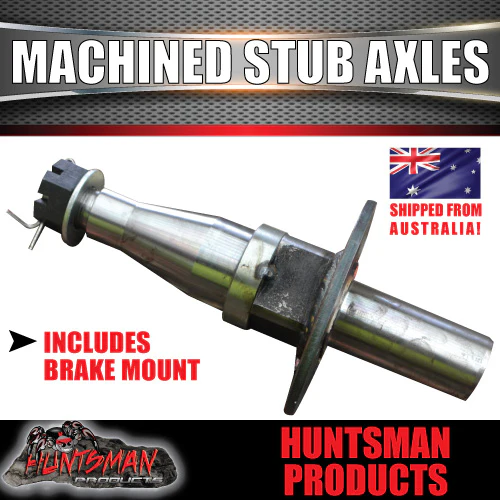

COMES WITH 12" ELECTRIC BRAKE MOUNTS WELDED TO SUIT 12" BRAKES

SUITED TO LANDCRUISER BEARINGS (30210 BEARING FOR INNER AND 15123 FOR OUTER)
CAPACITY 2000KG PER PAIR
NATURAL FINISH
COMES WITH AXLE NUTS, WASHERS AND SPLIT PINS
THIS STUB AXLE USED ON MANY TRAILER MANUFACTURERS AUSTRALIA WIDE.

PRICE IS FOR 2 STUB AXLES
