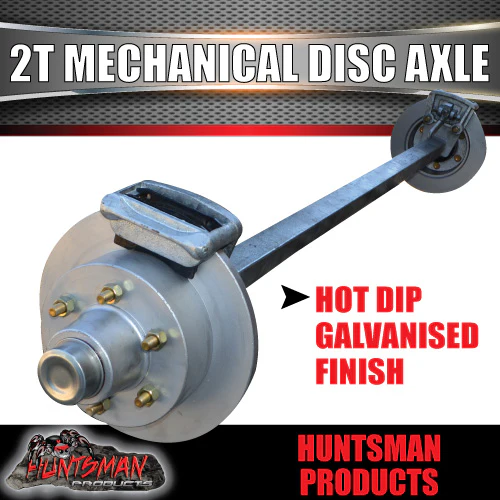

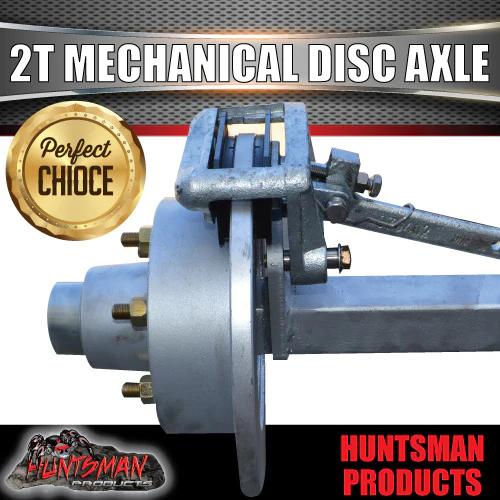

GALVANISED 50MM SQUARE SOLID COMPLETE MECHANICAL DISC BRAKED AXLE
(2000KG RATED)
12" DISCS. 5 OR 6 STUD LANDCRUISER PATTERN AVAILABLE
GALVANISED AXLE, DISCS AND CALIPERS
AVAILABLE LENGTHS
As this axle is locally engineered any size is available up to 2500mm Tip to tip (2325mm hub face to hub face)
If you can give a hub face to hub face then we will work out the length.
If you need assistance then please get in contact with us
PCD's AVAILABLE
5/150 (9/16" studs and nuts)
6/139.7 (1/2" studs and nuts)
AXLE THICKNESS: 50mm solid
DISCS: 12" 2 TONNE DISCS
BEARINGS: 30210 inner & 15123 outer
OPTIONS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE,
DROP AXLES APPROX 5 DAYS TO ENGINEER
JAPANESE BEARINGS: $90 (CLICK ON LINK BELOW)
"UPGRADE TO JAPANESE MANUFACTURED BEARINGS BY CLICKING HERE"
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
GALVANISED 50MM SQUARE SOLID COMPLETE MECHANICAL DISC BRAKED AXLE
(2000KG RATED)
12" DISCS. 5 OR 6 STUD LANDCRUISER PATTERN AVAILABLE
GALVANISED AXLE, DISCS AND CALIPERS
AVAILABLE LENGTHS
As this axle is locally engineered any size is available up to 2500mm Tip to tip (2325mm hub face to hub face)
If you can give a hub face to hub face then we will work out the length.
If you need assistance then please get in contact with us
PCD's AVAILABLE
5/150 (9/16" studs and nuts)
6/139.7 (1/2" studs and nuts)
AXLE THICKNESS: 50mm solid
DISCS: 12" 2 TONNE DISCS
BEARINGS: 30210 inner & 15123 outer
OPTIONS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE,
DROP AXLES APPROX 5 DAYS TO ENGINEER
JAPANESE BEARINGS: $90 (CLICK ON LINK BELOW)
"UPGRADE TO JAPANESE MANUFACTURED BEARINGS BY CLICKING HERE"
