50mm square 2000Kg Trailer Caravan Lazy 5 or 6 Stud Landcruiser Stud Pattern Solid Axle

GALVANISED 50MM SQUARE SOLID COMPLETE LAZY AXLE (2000KG RATED)
5 or 6 STUD LANDCRUISER PATTERN,
2 TONNE LANDCRUISER BEARINGS

GALVANISED LAZY AXLE

AVAILABLE LENGTHS
As this axle is locally engineered any size is available up to 2500mm tip to tip (2320mm hub face to hub face)
these axles can take up to 7 business days to be engineered
If you can give a hub face to hub face then we will work out the length.
If you need assistance then please get in contact with us

AXLE THICKNESS: 50mm solid
BEARINGS: 30210 INNER & 15123 OUTER

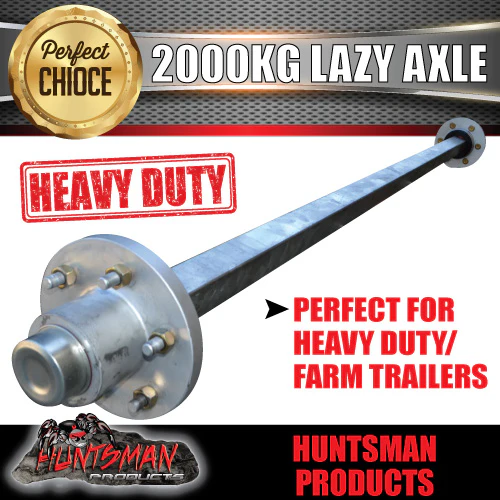

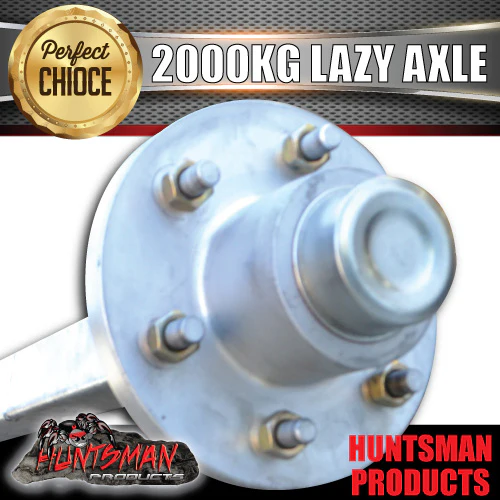

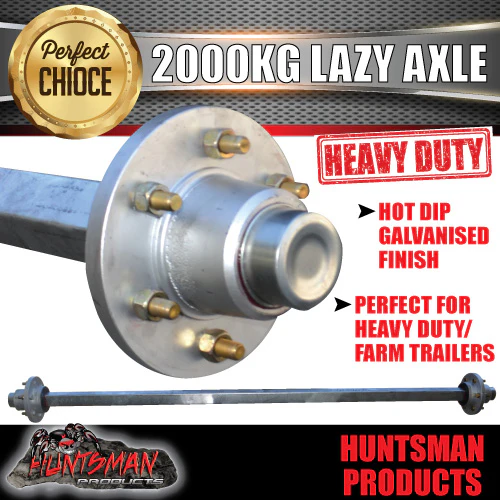

AXLE COMES COMPLETELY ASSEMBLED AS PICTURED
COMES WITH STAINLESS MARINE SEALS

Stud Patterns Available
6 STUD LANDCRUISER (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD LANDCRUISER (5/150 PCD, 9/16" STUDS AND NUTS)

EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295. DROP AXLE TAKES APPROX 5 BUSINESS DAYS
UPGRADE TO JAPANESE BEARINGS $90.0 (CLICK ON LINK BELOW)

 "UPGRADE TO JAPANESE MANUFACTURED BEARINGS BY CLICKING HERE"
