Original: $116.50
-70%$116.50
$34.95The Story

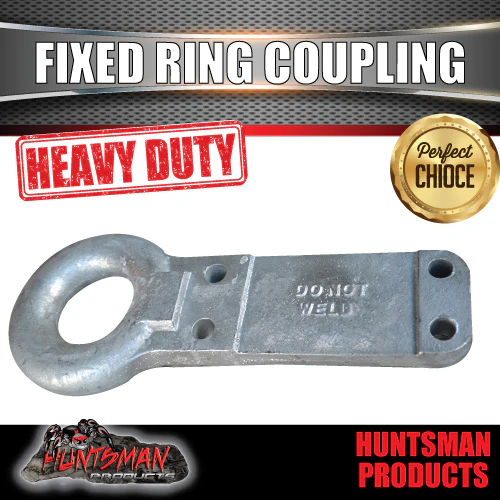

6.0 TONNE FIXED RING TYPE COUPLING
3" (75mm ID, 116mm OD)
* This style of coupling is similar in function to ball type couplings (fixed and over ride ) but instead of the connection to the tow vehicle being a standard 50 mm ball, the connection is a 75 mm inside diameter ring and this attaches to a “pintle hook” fitted to the tow vehicle.
* These types of couplings are primarily used in applications where the tow vehicle is a heavy commercial truck.
* As the Australian Standard AS 4177 states the 50mm towball to have a maximum capacity of 3500 kg ATM (total loaded mass), ring couplings are used when higher loads are involved.
614309 - AL-KO Fixed Ring Coupling, 6000kg 75mm, 4 hole Plated finish Suit Pintle.
Rating: 6000kg
Ring Size: 75mm (3")
Mounting Hole: 182mm (L) x 52mm (W)
Mounting Hole Diameter: 16.8mm
Surface Finish: Zinc Plated
Ring centre to first mounting hole (Nominal): 116mm
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
6.0 TONNE FIXED RING TYPE COUPLING
3" (75mm ID, 116mm OD)
* This style of coupling is similar in function to ball type couplings (fixed and over ride ) but instead of the connection to the tow vehicle being a standard 50 mm ball, the connection is a 75 mm inside diameter ring and this attaches to a “pintle hook” fitted to the tow vehicle.
* These types of couplings are primarily used in applications where the tow vehicle is a heavy commercial truck.
* As the Australian Standard AS 4177 states the 50mm towball to have a maximum capacity of 3500 kg ATM (total loaded mass), ring couplings are used when higher loads are involved.
614309 - AL-KO Fixed Ring Coupling, 6000kg 75mm, 4 hole Plated finish Suit Pintle.
Rating: 6000kg
Ring Size: 75mm (3")
Mounting Hole: 182mm (L) x 52mm (W)
Mounting Hole Diameter: 16.8mm
Surface Finish: Zinc Plated
Ring centre to first mounting hole (Nominal): 116mm
