HEAVY DUTY 8" JOCKEY WHEEL
SOLID STEEL RIM WITH HARDENED RUBBER OUTER TYRE
8" SOLID WHEEL SWING UP JOCKEY WHEEL
THIS JOCKEY WHEEL CAN BE WELDED OR BOLTED

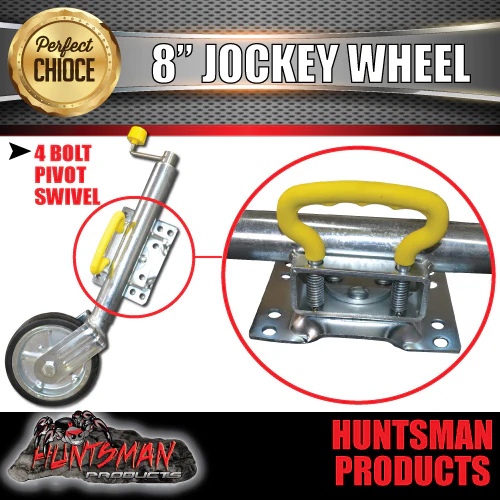

4 BOLT SWIVEL BRACKET (suited to 50mm, 75mm and 100mm a frames)
5MM FORK
PLASTIC HANDLE
CAN BE WELDED OR SUPPLIED WITH U-BOLTS

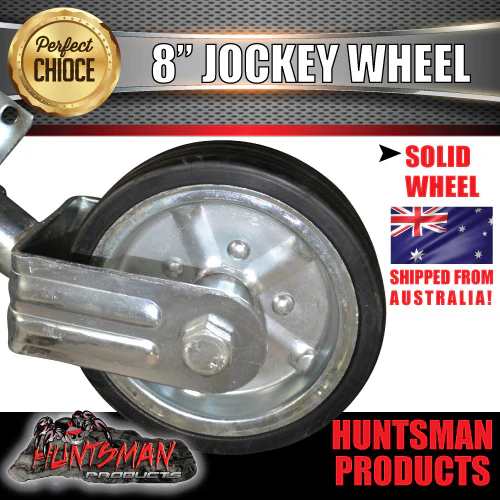

SOLID WHEELS

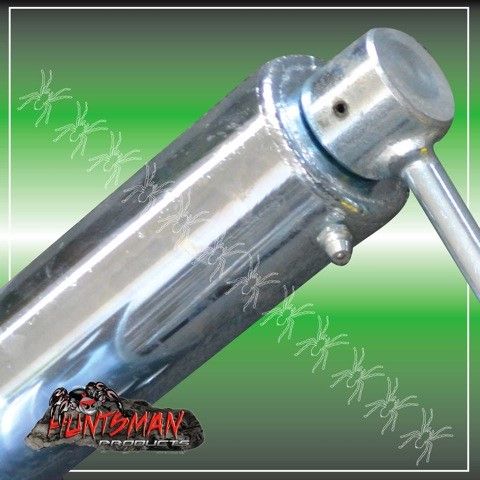

COMES WITH GREASE NIPPLE TO KEEP INTERNAL BEARINGS LUBRICATED
RATED AT 750KG (BALL WEIGHT)
Height from middle of bracket to top of handle: 220mm
Overall Length closed: 600mm
Travel: 253mm
height from centre of bracket to bottom of tyre
fully closed 380mm
fully extended 633mm
UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE HUNTSMAN BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
HEAVY DUTY 8" JOCKEY WHEEL
SOLID STEEL RIM WITH HARDENED RUBBER OUTER TYRE
8" SOLID WHEEL SWING UP JOCKEY WHEEL
THIS JOCKEY WHEEL CAN BE WELDED OR BOLTED
4 BOLT SWIVEL BRACKET (suited to 50mm, 75mm and 100mm a frames)
5MM FORK
PLASTIC HANDLE
CAN BE WELDED OR SUPPLIED WITH U-BOLTS
SOLID WHEELS
COMES WITH GREASE NIPPLE TO KEEP INTERNAL BEARINGS LUBRICATED
RATED AT 750KG (BALL WEIGHT)
Height from middle of bracket to top of handle: 220mm
Overall Length closed: 600mm
Travel: 253mm
height from centre of bracket to bottom of tyre
fully closed 380mm
fully extended 633mm
UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE HUNTSMAN BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY
