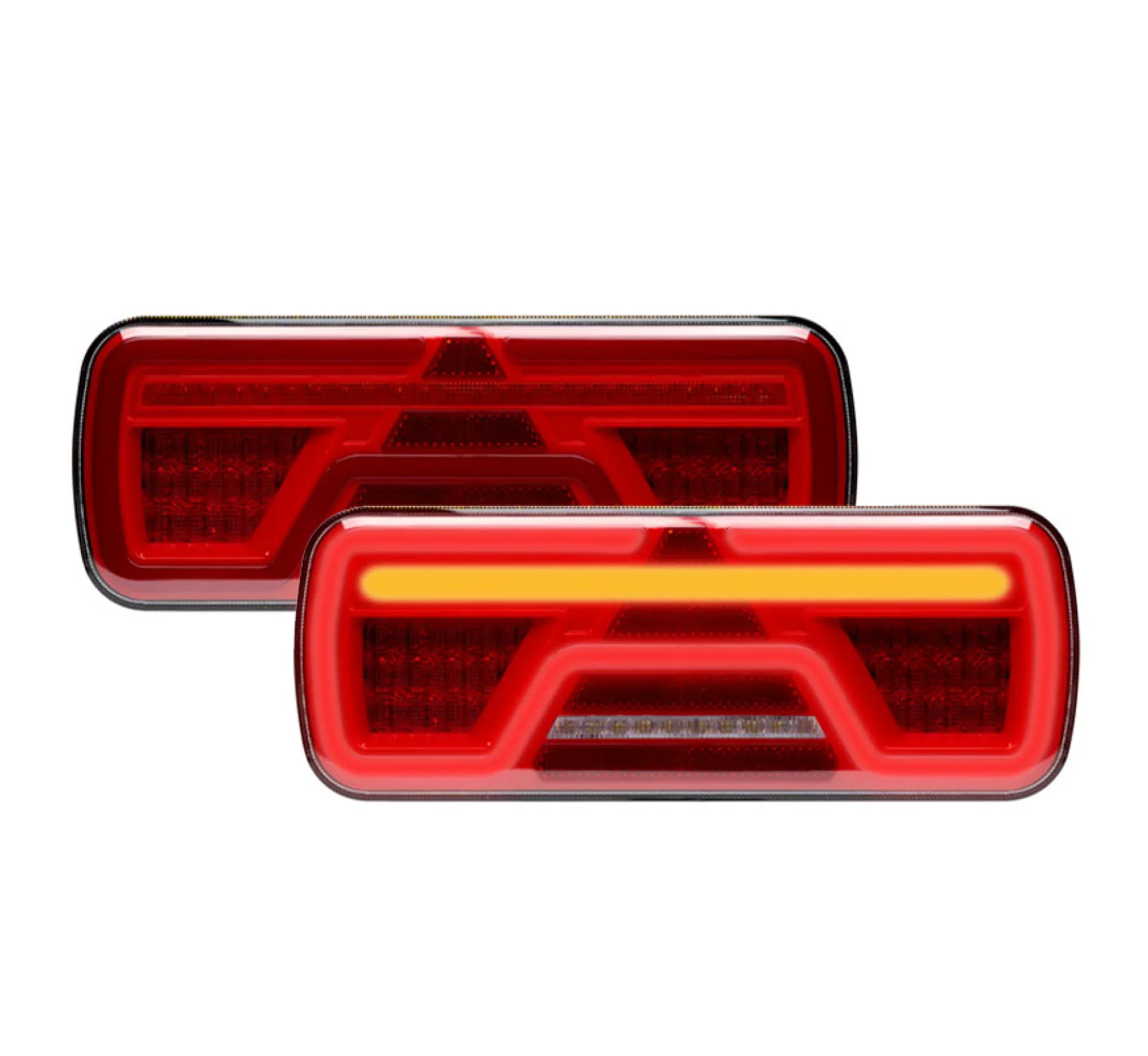

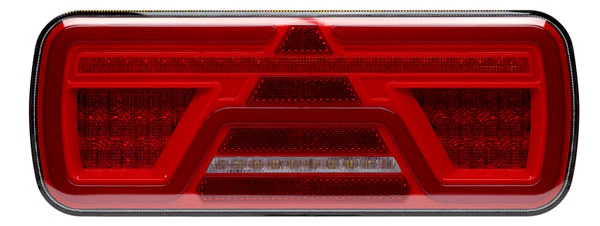

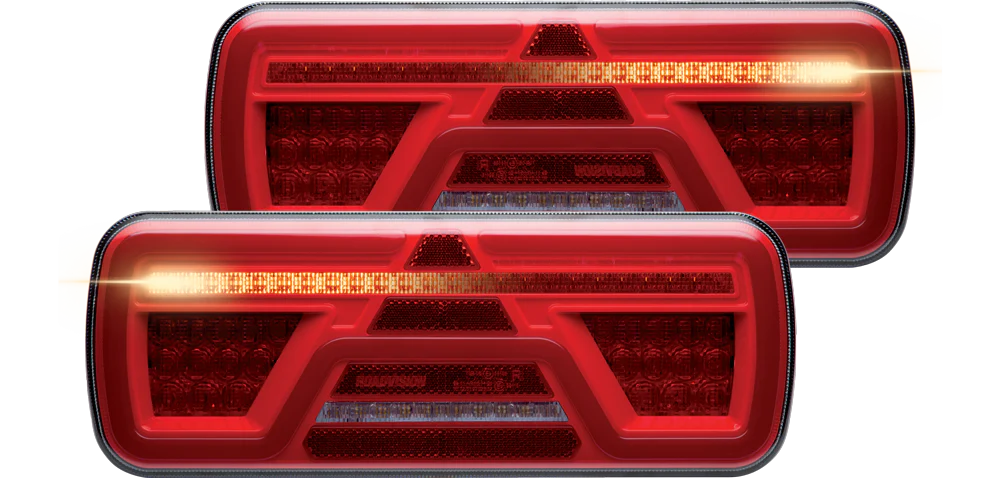

2x Roadvision BR360 LED Rear Combination Sequential Tail Light Stop/Tail/Ind/Rev/Fog 4wd Caravan Trailer

ROADVISION TRIPLE COMBINATION LAMPS

BR360 SERIES



ROADVISION’s BR360 Series are the complete all-in-one fit and forget solution. Featuring the latest sequential indicator technology, the BR360 Series delivers stop/tail, reverse, fog, retro reflector and a sequential indicator that flashes progressively offering an increased level of safety. Constructed with durable polycarbonate lenses and housings, the BR360 Series will survive the toughest environments. Dust & water proof to IP67 and with a life span rated at 100,000 hours, the BR360 Series is totally maintenance free. With ROADVISION it’s FIT and FORGET.



PRICE IS FOR 2 LIGHTS.  BR360LARW & BR360RARW



FEATURES:

Stop/Tail Sequential Indicator, Fog & Reverse functions

Retro Reflector incorporated into lens

Glow Park Lamp

Multi-volt 10-30V DC input & low current draw

100,000HR rated LED lifespan with solid state technology

Simple surface mount design

ADR/ECE approved for all functions

Light weight tough polycarbonate housing & lens





RANGE SPECIFICATIONS

Description: Combination Lamp Rectangle

Functions: Stop/Tail/Sequential Indicator/Fog & Reverse

Voltage Input: 10-30V DC

Number of LED's: Stop - 12 LEDs, Tail - 60 LEDs, Reverse 10 LEDs, Fog - 12 LEDs

Current Draw Amps, Ind - 0.2A, S/T - 0.2/0.3A, Rev - 0.3A, Fog - 0.4A @ 13.8V

Dimensions 360x135x36mm

Lens Construction: Polycarbonate

Housing Construction: Polycarbonate

Mounting Hole Centre: 152mm Stud Centres

Cable Length: 300mm Sheathed

Wiring Colour Codes: Earth - Black, Stop - Red/Blue, Tail - Green, Indicator - Green/Brown, Reverse - Green/Violet, Fog - Red

ADR Approved

CTA Approved
