x2 Trailer Caravan Hubs suit Commodore Pattern 5/120 PCD & LM Bearing Kits

X2 COMMODORE PATTERN TRAILER HUBS
WITH LM (HOLDEN) BEARING KITS

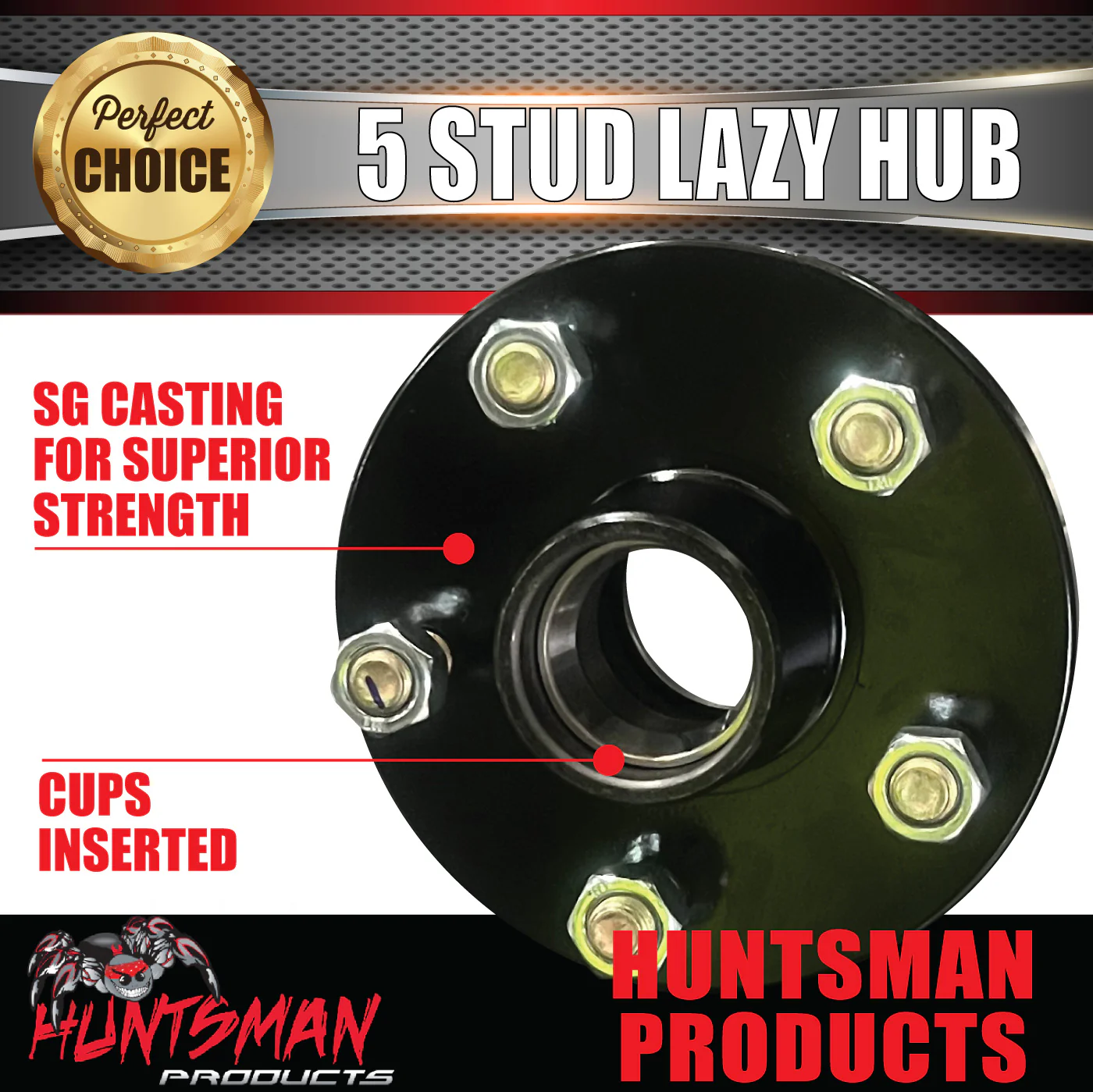

(SG casting. much stronger than grey iron casting)

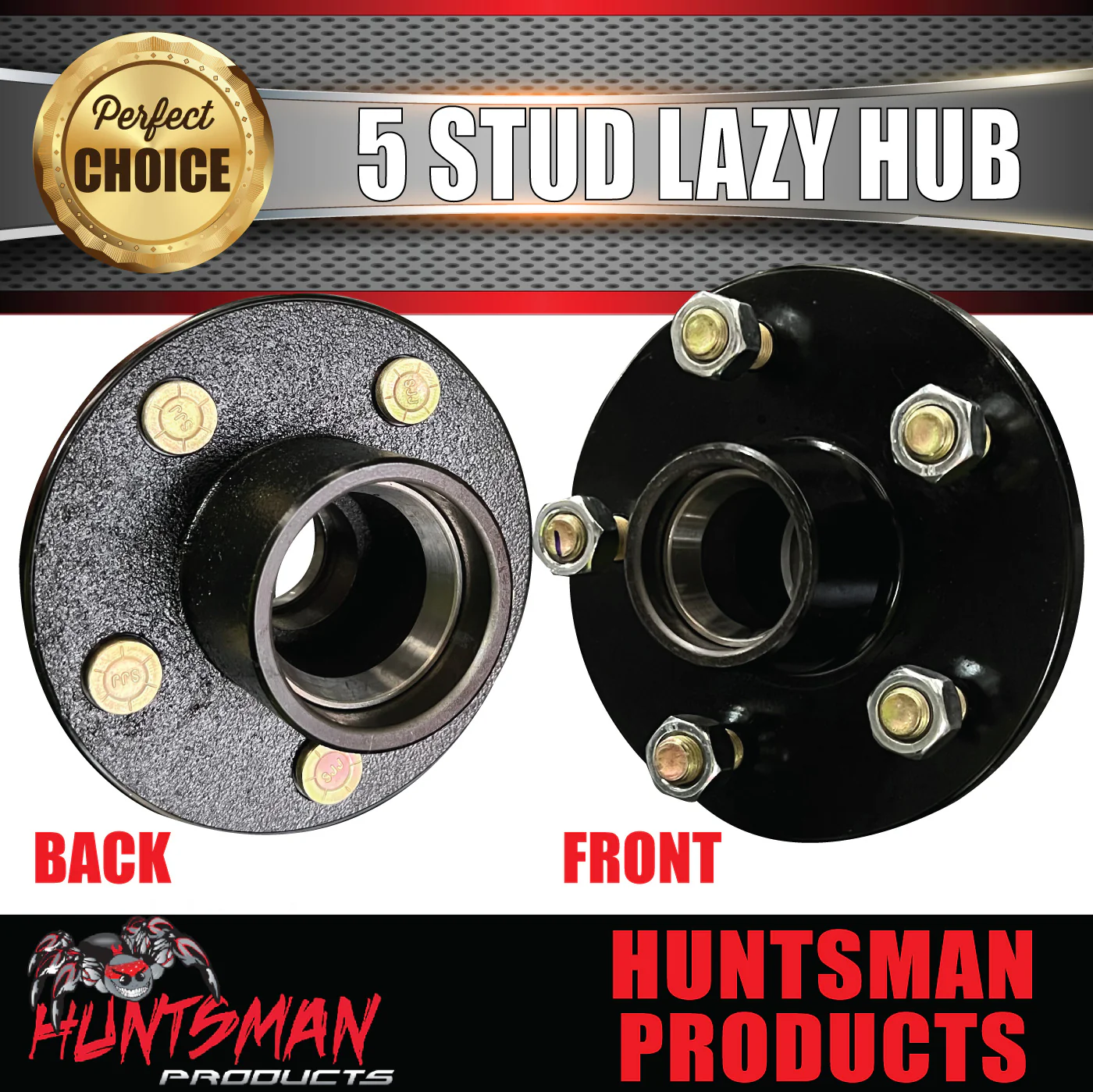

2x 5 STUD COMMODORE STEEL HUBS WITH STUDS AND NUTS
PCD: 5/120
7/16" STUDS AND NUTS
HUB DIAMETER: 152.4MM
MATERIAL: S.G CASTING

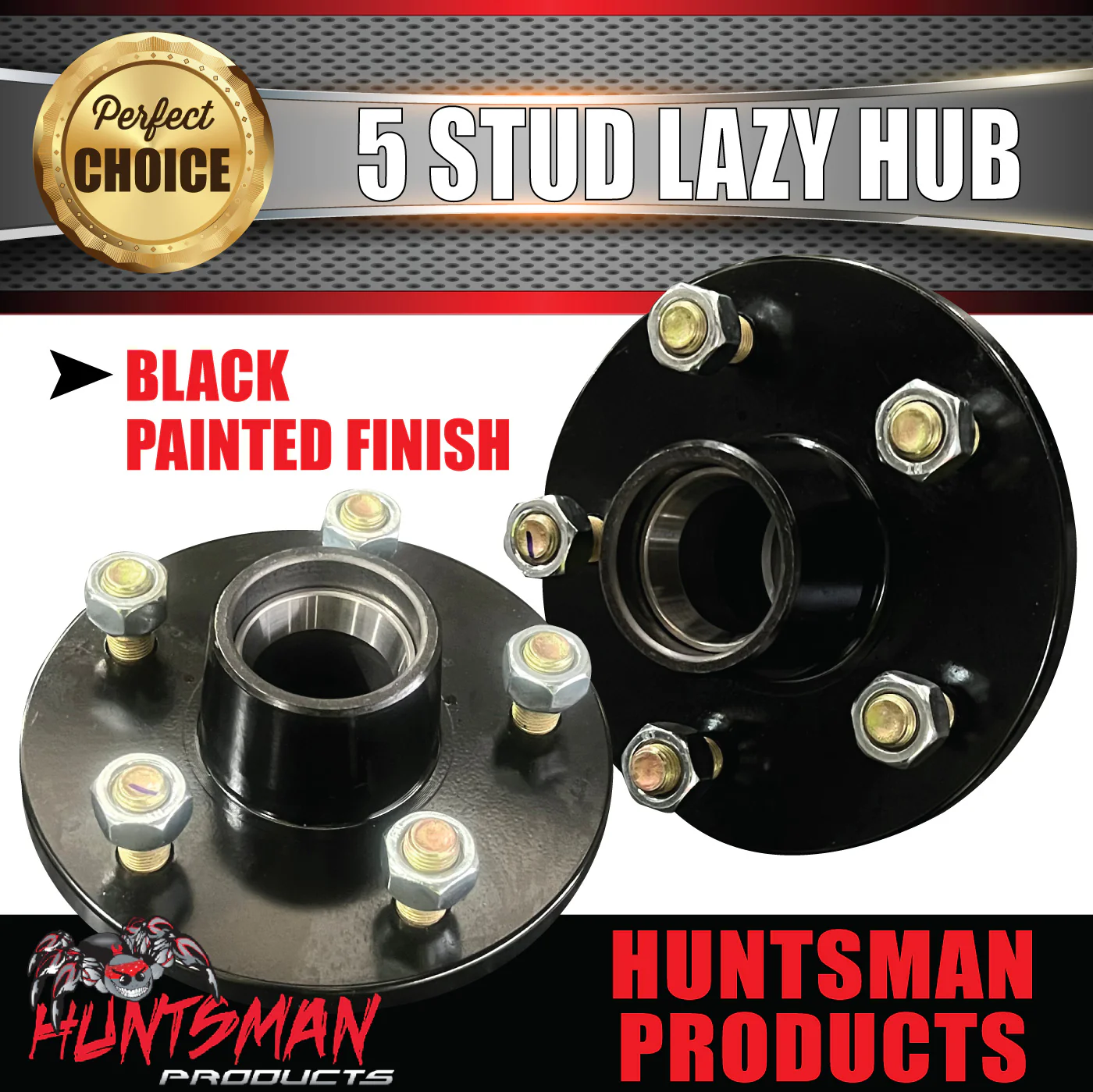

FINISH: BLACK PAINTED
70.53MM FROM CENTRE OF ONE STUD TO THE CENTRE OF THE NEXT STUD
SUITS AXLES: 39MM AND 40MM

2X LM BEARING SETS
2X INNER BEARINGS ID:31.7MM (LM67048)
2XOUTER BEARINGS ID:19MM (LM11949)
2X OUTER BEARING CUPS (already inserted)
2X INNER BEARING CUPS (already inserted)
2X LM REAR SEALS
2X 45MM DUST CAPS
HUBS COME WITH CUPS INSERTED



BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $40 (CLICK ON LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
