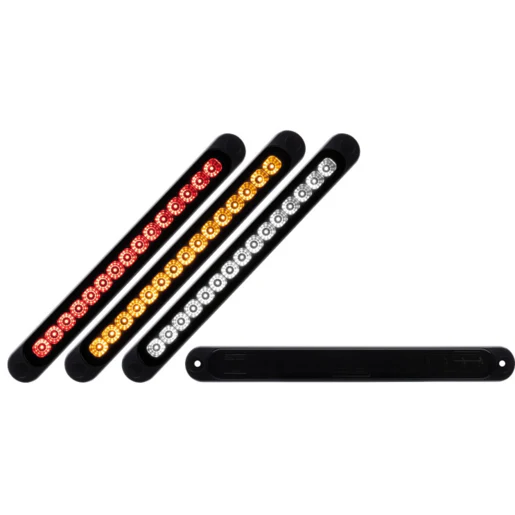

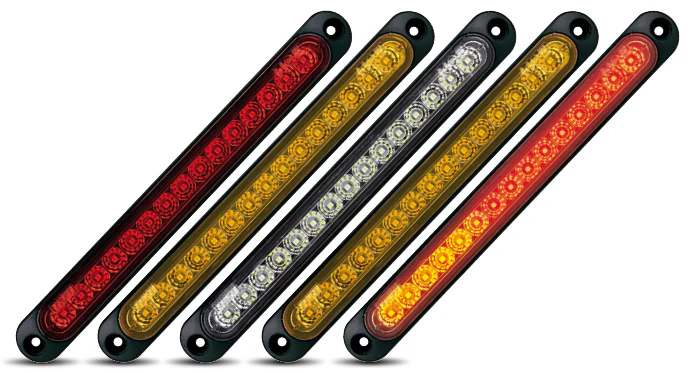

Roadvision Blacked Out LED Rear Ultra Slim Stop/Tail Strip Light Lamp 252mmx28mm

COMBINATION STEALTH LAMPS BRS70 SERIES

X1 BRS70R STOP/TAIL STRIP LIGHT



ROADVISION’s BRS70 Series LED signal lamps are a versatile ultra-slimline solution! Featuring blacked-out lenses and high-power LED’s, these ultra-slim strip lamps will give you that perfect STEALTH effect.

Designed for applications where space is at a premium, the BRS70 Series deliver the durability of maintenance free technology and provide greater visibility for increased safety. Available in Stop/Tail, Indicator, Sequential Indicator and Reverse functions, the BRS70’s are designed to be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design.

Producing more light output than incandescent lamps, at a fraction of the current draw, the BRS70 Series strip signal lamps are constructed with durable polycarbonate lenses and high impact ABS housings. These lamps are dust & water proof, and totally maintenance free with a lifespan rated at 100,000 hours. STEALTH…now you see them, now you don’t!



PRICE IS FOR 1 ONLY ROADVISION BRS70R STOP TAIL STRIP LIGHT





RANGE FEATURES

Ultra-slimline LED strip signal lamps

Blacked out lenses

Multi-volt 10-30V DC input & low current draw

Brighter than conventional incandescent systems

100,000 hour LED life span with solid state technology

Maintenance free

Sealed polycarbonate lens & high impact ABS housing

Water and dust proof

Pre-wired with 300mm of sheathed tinned copper cable

Simple surface mount design

ADR/ECE approved for all functions





BR70R SPECIFICATIONS

Description - Stop/Tail Rear Strip Lamp

Functions - Stop/Tail

Voltage Input - 10-30V DC

Number of LED's - 15 SMD LED's

Current Draw Amps - 0.1/0.05A @ 13.8V

Dimensions AxBxC - 252x28x23.5mm

Lens Construction - Polycarbonate

Housing Construction - High Impact ABS

Mounting Hole Centres - 234mm

Cable Length - 300mm Tinned Cable

CTA Approval - CTA-060914
