The Story

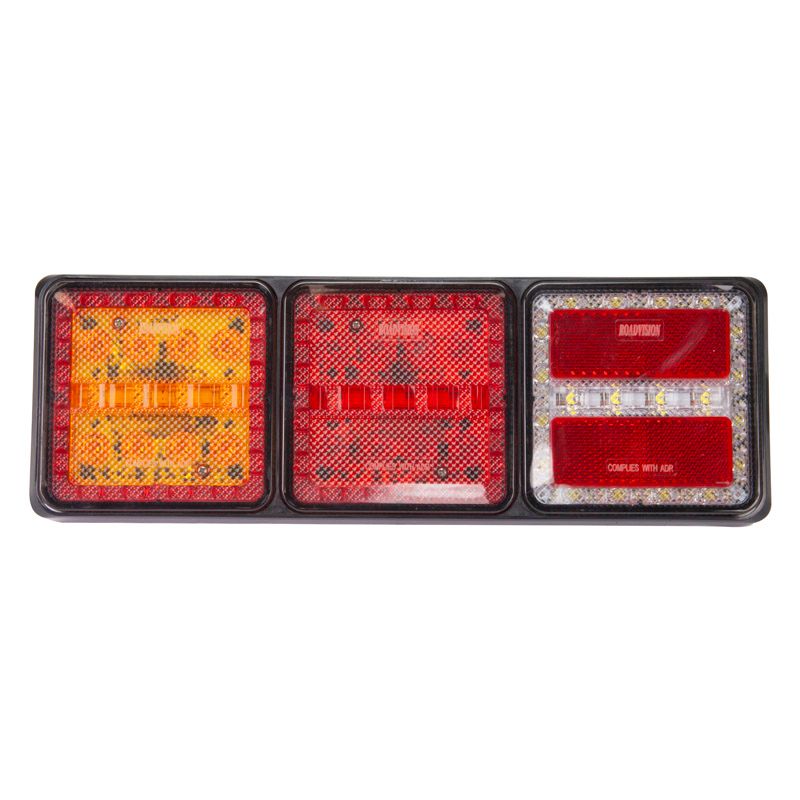

ROADVISION TRIPLE COMBINATION LAMPS
BR282 SERIES
ROADVISION’s new BR282 Series LED triple combination lamps deliver the durability of maintenance free LED technology and provide greater visibility for increased safety with minimum current draw. Constructed with durable polycarbonate lenses and high impact ABS housings, the BR282 Series will survive the toughest environments. Designed with a simple surface mount design, they are dust & water proof to IP67 and totally maintenance free, with a life span rated at 100,000 hours. ROADVISION’s new BR282 Series is a complete FIT and FORGET Solution.
PRICE IS FOR 1 X BR282ARW LIGHT
FEATURES:
Retro reflector incorporated into lens
Multi-volt 10-30V DC input & low current draw
100,000 hour rated LED lifespan with solid state technology
Water & dust proof
Sealed polycarbonate lens & high impact ABS housing
Maintenance free
Simple surface mount design
ADR/ECE approved for all functions
RANGE SPECIFICATIONS
Description: Triple Combination Lamp
Functions: Stop/Tail/Indicator
Voltage Input: 10-30V DC
Number of LED's: Indicator - 12 LED’s, Stop - 24 LED’s, Tail - 60 LED’s
Current Draw Amps, Ind - 0.1 @13.8V, S/T - 0.1/0.05A @ 13.8V, Rev - 0.1A @ 13.8V
Dimensions 282 x 95 x 30mm
Lens Construction: Polycarbonate
Housing Construction: High Impact ABS
Mounting Type: Surface Mount
Mounting Hole /Cut Out: 120mm Stud Centres
Cable Length: 300mm Tinned Copper LEDLink Connector
Wiring Colour Codes: Earth - White, Stop - Red, Tail - Brown, Indicator - Green or Yellow, Reverse – Black
ADR Approved
CTA Approved
