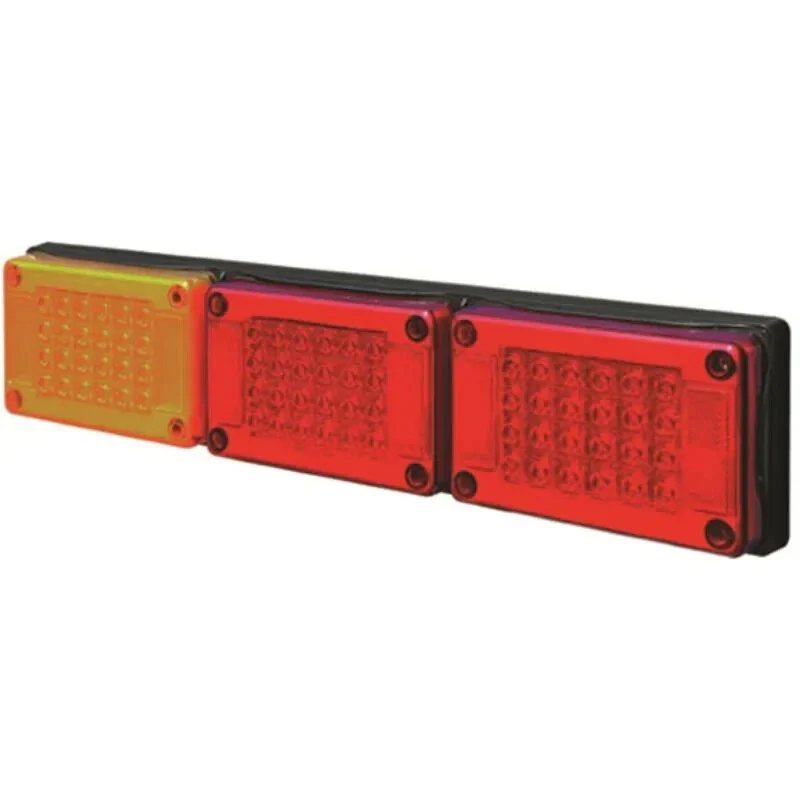

ROADVISION COMBINATION LAMPS
BR601 SERIES
ROADVISION’s BR601 Series LED jumbo combination lamps are an all-in-one quality solution for heavy duty trucks and trailers… Roadvision’s BR601 Series LED jumbo combination lamps deliver the durability of maintenance free LED technology and greater visibility providing increased safety. A complete heavy duty all-in-one solution with stop, tail, indicator, reflector and the option of reverse all in the one lamp. The BR601 Series combination lamps produce more light output than incandescent lamps, whilst drawing a fraction of the current. Couple this with unbreakable polycarbonate lenses and an extremely tough housing manufactured from high impact ABS, these lamps are dust & water proof and totally maintenance free, with a life span rated at 100,000 hours. With ROADVISION it’s FIT and FORGET.
PRICE IS FOR 1 X BR601ARR TRIPLE COMBINATION LIGHT
FEATURES
Jumbo LED combination lamp range
Multi-volt 10-30V DC input & low current draw
Brighter than conventional incandescent systems
100,000 hour LED life span with solid state technology
Maintenance free
High impact ABS housing & sealed polycarbonate lens
Water and dust proof
Pre-wired with 300mm LEDLink Connector
Simple surface mount design
Retro-fits in place of existing jumbo lamps
ADR/ECE approved for all functions
RANGE SPECIFICATIONS
Description: Rect Stop/Tail(x2)/Ind Lamp Triple Module
Functions: Stop/Tail/Indicator/Reflector
Voltage Input: 10-30V DC
Number of LED's: Indicator - Indicator - 24 LED’s, Stop/Tail - 48 LED’s
Current Draw Amps, Ind - 0.1A, S/T - 0.1/0.05A @ 13.8V
Dimensions 604x132x41mm
Lens Construction: Polycarbonate
Housing Construction: ABS High Impact
Mounting Type: Surface Mount
Mounting Hole /Cut Out: 501mm & 325mm
Cable Length: 300mm LEDLink Connector
ADR Approved
CTA Approved
