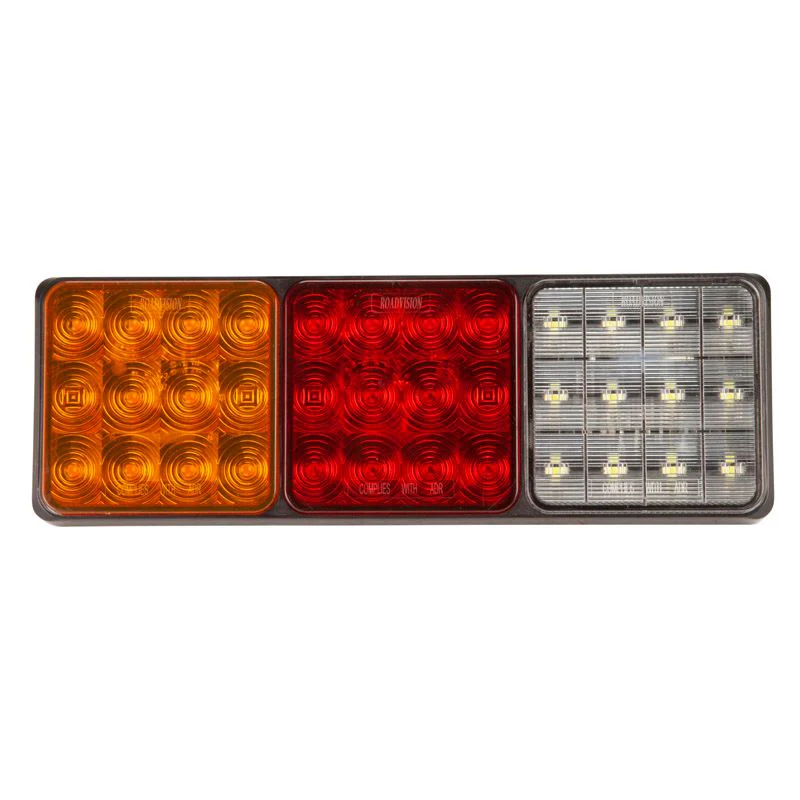

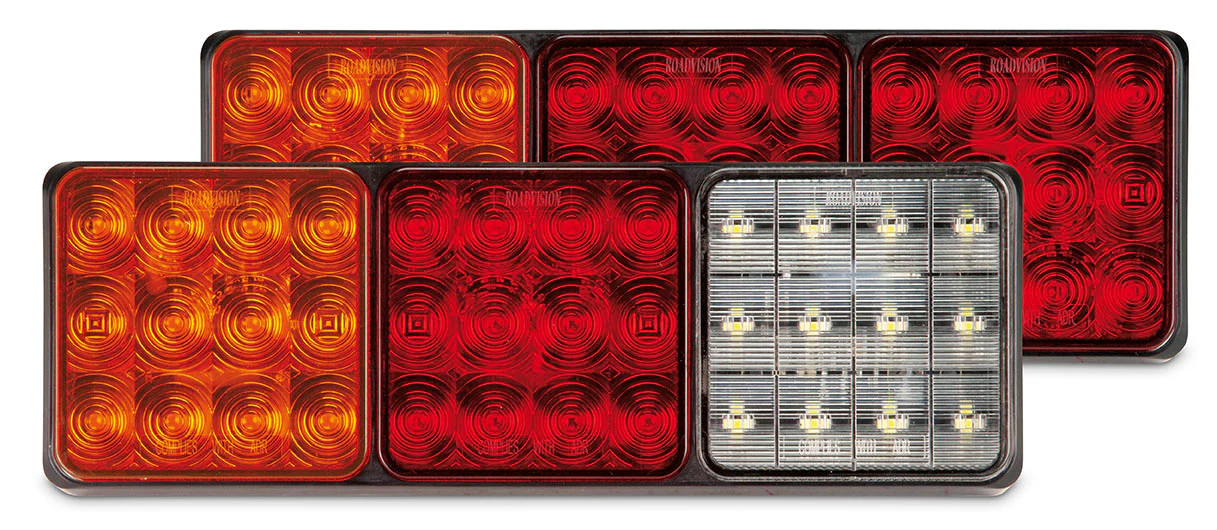

ROADVISION TRIPLE COMBINATION LAMPS
BR82 SERIES
ROADVISION’s BR82 Series triple combination trailer lamps! The complete all-in-one fit and forget solution. Roadvision’s super bright LED combination lamps deliver the durability of maintenance free LED technology and greater visibility providing increased safety. Roadvision’s BR82 Series are the complete all in one solution with Stop, Tail, Indicator & Reverse all in the one lamp. The BR82 Series combination lamps produce more light output than incandescent lamps, whilst drawing a fraction of the current. Couple this with unbreakable polycarbonate lenses and an extremely tough housing manufactured from high impact ABS, these lamps are weather resistant and totally maintenance free, with a life span rated at 100,000 hours. With ROADVISION it’s FIT and FORGET.
PRICE IS FOR 1 X BR82ARW LIGHT
FEATURES:
Retro reflector incorporated into lens
Multi-volt 10-30V DC input & low current draw
100,000 hour rated LED lifespan with solid state technology
Water & dust proof
Sealed polycarbonate lens & high impact ABS housing
Maintenance free
Simple surface mount design
ADR/ECE approved for all functions
RANGE SPECIFICATIONS
Description: Triple Combination Lamp
Functions: Stop/Tail, Indicator & Reverse
Voltage Input: 10-30V DC
Number of LED's: Indicator - 12 LED's, Stop/Tail - 12 LED's, Reverse - 12 LED's
Current Draw Amps, Ind - 0.1A @ 13.8V, S/T - 0.1/0.05A @ 13.8V, Rev - 0.1A @13.8V
Dimensions 282 x 95 x 30mm
Lens Construction: Polycarbonate
Housing Construction: High Impact ABS
Mounting Hole Centre: 120mm Stud Centres
Cable Length: 300mm Tinned Copper LEDLink Connector
Wiring Colour Codes: Earth - White, Stop - Red, Tail - Brown, Indicator - Green or Yellow, Reverse – Black
ADR Approved
CTA Approved
