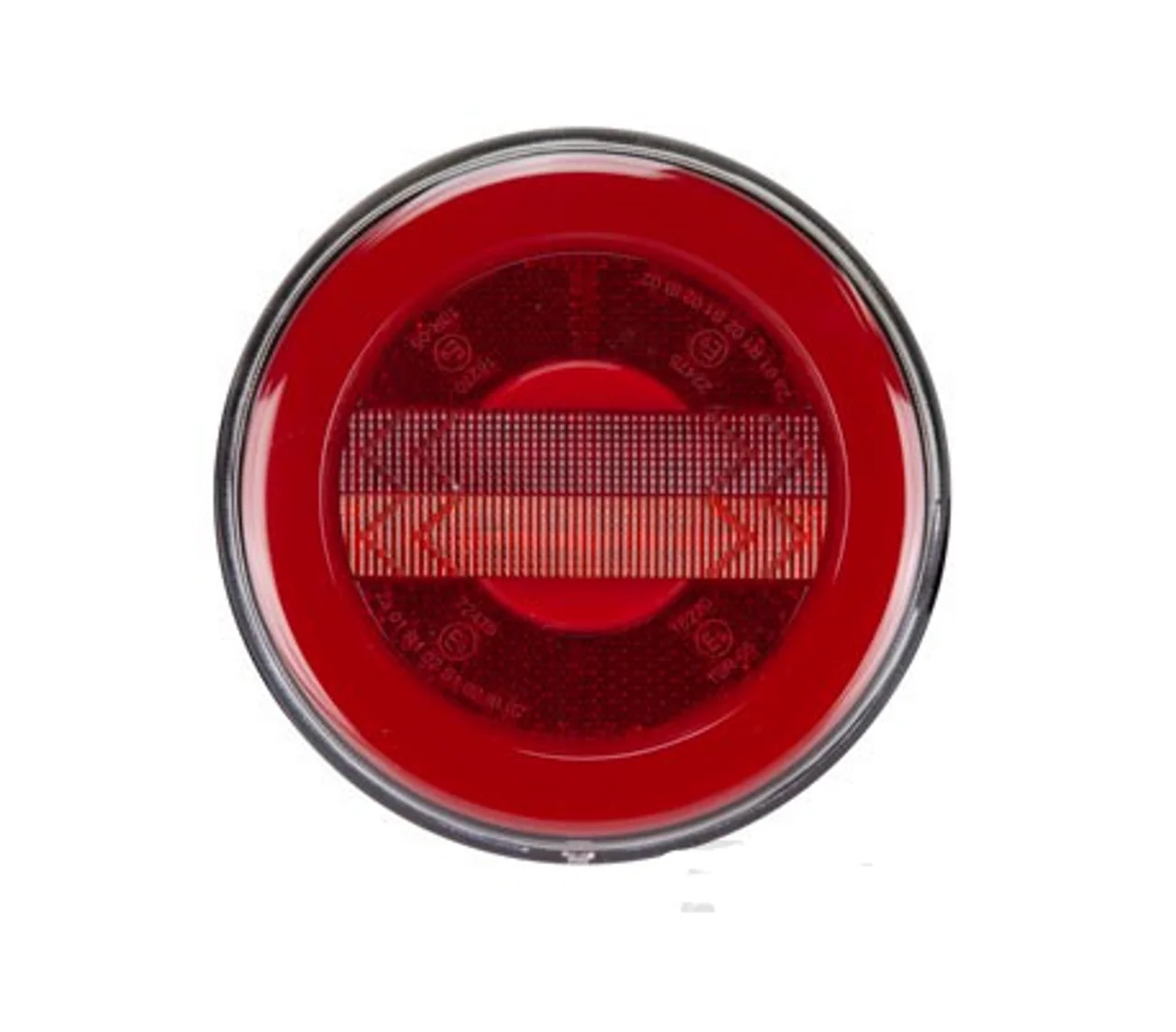

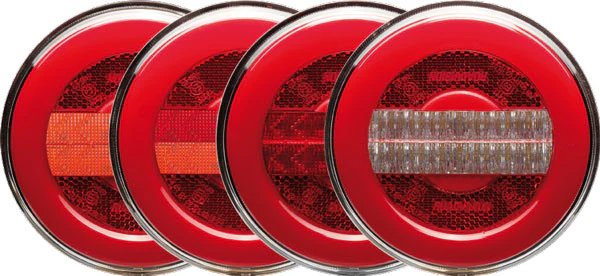

Roadvision LED Rear Combination Trailer 4wd Truck Surface Mount Light Lamp BR122ARR Stop/Ind/Tail/Ref

ROADVISION COMBINATION LAMPS
BR122ARR COMBINATION SERIES
COMES X1 LIGHT

ROADVISION’s BR122 Series round LED signal lamps are a versatile stand alone or combination lamp solution, featuring Glow Tech tail lights they have both a contemporary yet classic look! Roadvision’s super bright LED signal lamps deliver the durability of maintenance free LED technology and greater visibility, providing increased safety with minimum current draw. Couple this with unbreakable PMMA lenses and an extremely tough housing manufactured from high impact ABS, the BR122 Series will survive the toughest environments. They are dust, water proof and totally maintenance free, with a life span rated at 100,000 hours. With the ROADVISION BR122 Series, it’s FIT and FORGET.

RANGE FEATURES
Multi-volt 10-30V DC input & low current draw
Glow Tech tail light
100,000 hour LED life span with solid state technology
Maintenance free
High impact ABS housing and PMMA lens
Water and dust proof
Pre-wired with 300mm of sheathed tinned copper cable
Simple surface mount design
ADR/ECE approved for all functions

BR122ARR
Input Voltage: 10-30 VDC
Number of LEDS: Indicator - 8 LEDs, Stop - 8 LEDs, Tail - 20 LEDs
Current Draw @ 13.8V: Ind - 0.1A, S/T - 0.2/0.15A @ 13.8V
Lens Construction: PMMA
Housing Construction: High Impact ABS
Mounting Hole Centres: 45mm Stud Centres
Dimensions AxB: 122 x 38mm
Cable Length: 250mm Sheathed
ADR Approval: S/T - E9*7R02/27*22475*00, Ind - E9*6R01/28*22475*00, E9*3R02/17*22475*00
Wiring: Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow
