The Story

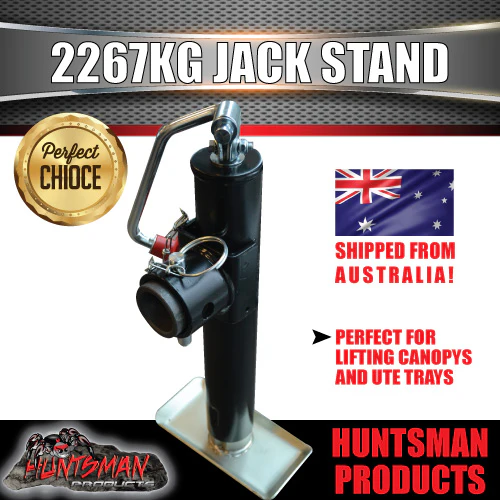

trailer caravan jack stand.
2267kg Rated (5000LBS) 375MM TRAVEL
CLOSED OVERALL HEIGHT: 558MM
EXTENDED OVERALL HEIGHT: 930MM
TRAVEL: 375M
PLATE SIZE: 100MM X 200MM
BOTTOM OF PLATE TO CENTRE OF MOUNT WHEN CLOSED: 410MM
BOTTOM OF PLATE TO CENTRE OF MOUNT WHEN EXTENDED: 785MM

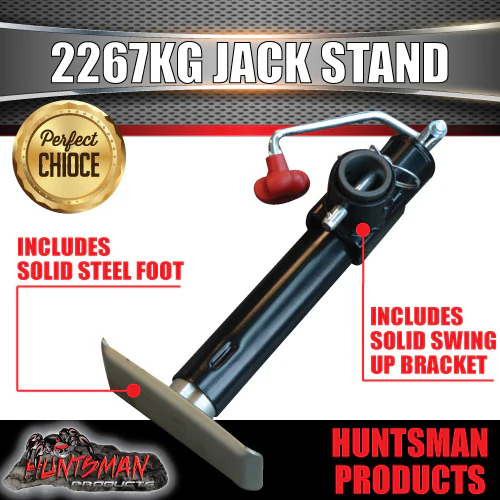

STEEL FOOT

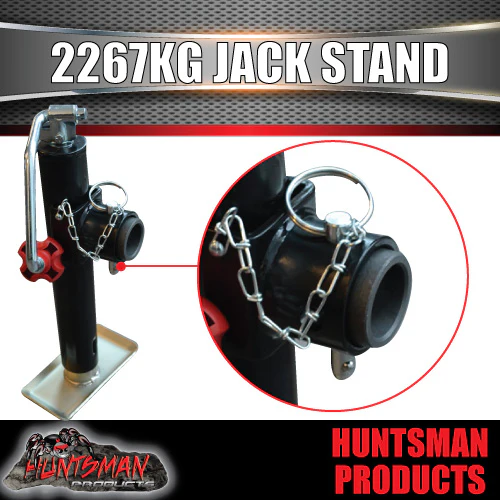

SWING AWAY BRACKET
WELD ON BRACKET (solid inner tube welds to trailer, van or canopy)
COMES WITH GREASE NIPPLE.
FOLD DOWN HANDLE FOR TRAVEL
HANDLE IS RED OR BLACK DEPENDING ON AVAILABILITY
FINISH: BLACK POWDER COAT AND ZINC COATING
USED ON CARAVANS, TRAILERS AND LIFTING CANOPY'S OF UTES
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
trailer caravan jack stand.
2267kg Rated (5000LBS) 375MM TRAVEL
CLOSED OVERALL HEIGHT: 558MM
EXTENDED OVERALL HEIGHT: 930MM
TRAVEL: 375M
PLATE SIZE: 100MM X 200MM
BOTTOM OF PLATE TO CENTRE OF MOUNT WHEN CLOSED: 410MM
BOTTOM OF PLATE TO CENTRE OF MOUNT WHEN EXTENDED: 785MM
STEEL FOOT
SWING AWAY BRACKET
WELD ON BRACKET (solid inner tube welds to trailer, van or canopy)
COMES WITH GREASE NIPPLE.
FOLD DOWN HANDLE FOR TRAVEL
HANDLE IS RED OR BLACK DEPENDING ON AVAILABILITY
FINISH: BLACK POWDER COAT AND ZINC COATING
USED ON CARAVANS, TRAILERS AND LIFTING CANOPY'S OF UTES
