Twin Wheel 10" Trailer Caravan Jockey Wheel. 1600kg Swing Up. Solid Wheel. Greasable

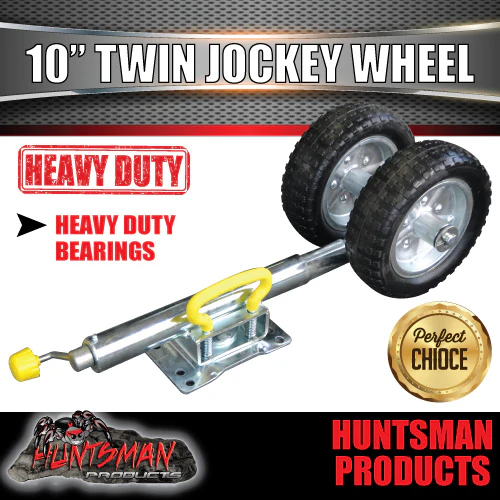

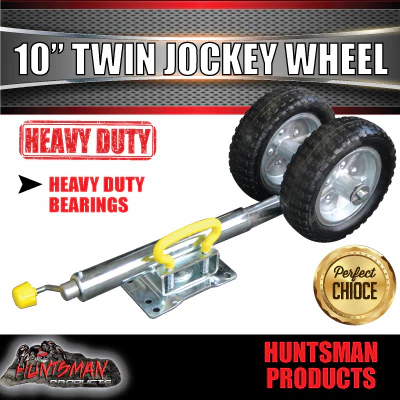

Heavy Duty Twin 10" Jockey Wheel
1600KG BALL WEIGHT RATED
MAKE MOVING BIGGER CARAVANS, CAMPERS AND TRAILERS MUCH EASIER!

TWIN 10" SOLID WHEEL SWING UP JOCKEY WHEEL
THIS JOCKEY WHEEL CAN BE WELDED OR BOLTED

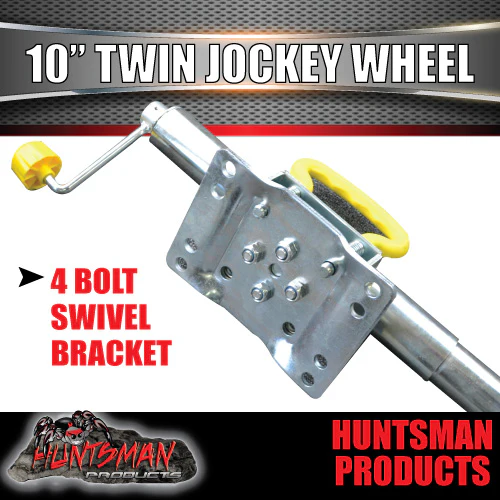

4 BOLT SWIVEL BRACKET (suited to 50mm, 75mm and 100mm a frames)

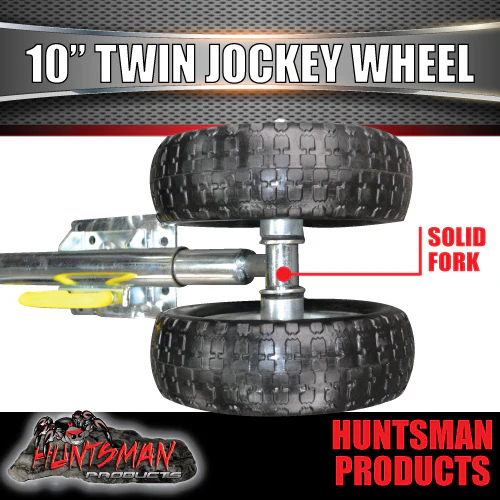

SOLID 22MM FORK
PLASTIC HANDLE
CAN BE WELDED OR SUPPLIED WITH U-BOLTS

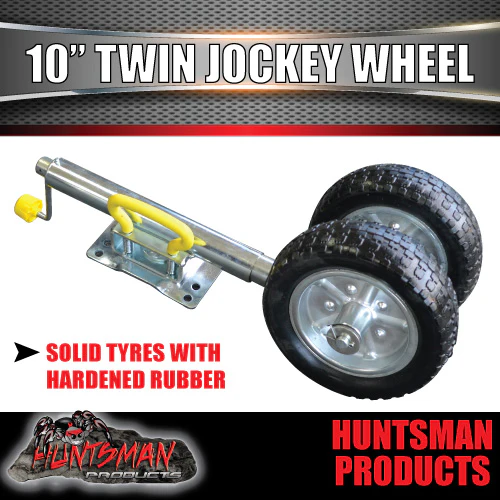

SOLID WHEELS
HARDENED RUBBER OUTER TYRES
RUBBER MOULDED HANDLE
RATING: 1600KG (ball weight)

TYRE WIDTH: 80MM
WIDTH OF BOTH TYRES OVERALL: 250MM

height from centre of bracket to bottom of tyre
fully closed 420mm
fully extended 680mm

Height from middle of bracket to top of handle: 215mm
Overall Length closed: 630mm
Travel: 260mm

This twin wheel setup makes it a lot easier to move trailers with a heavy ball weight on softer ground
UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE HUNTSMAN BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY



FULLY GREASABLE
