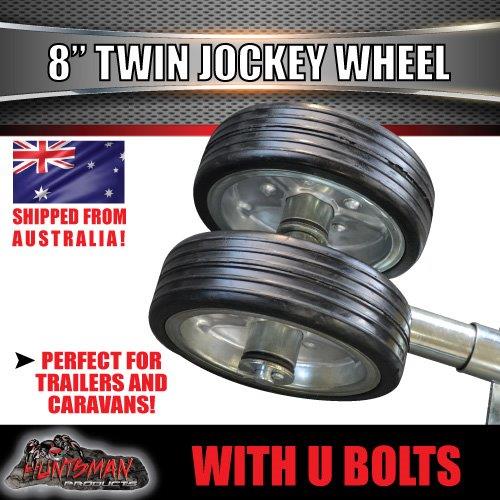

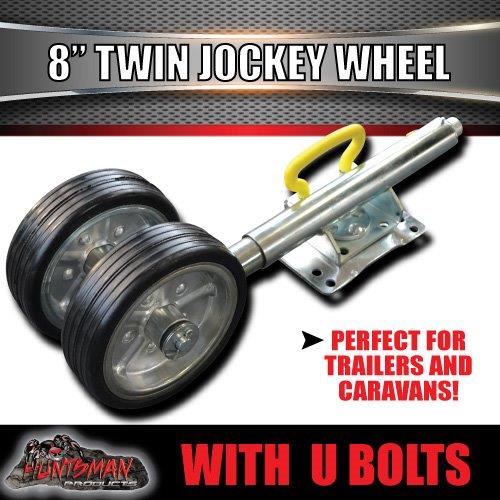

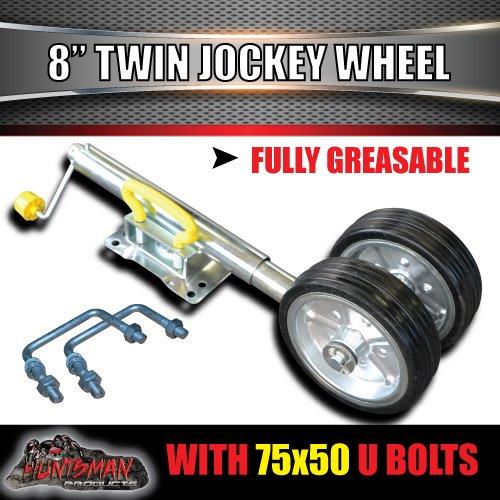

Twin 8" Trailer Caravan Jockey Wheel 1200kg Swing Up Solid wheels + U Bolts Suit 75x50mm Frame

TWIN 8" JOCKEY WHEEL WITH 75MM X 50MM MOUNTING U BOLTS

1200KG BALL WEIGHT RATED

MAKE MOVING BIGGER CARAVANS, CAMPERS AND TRAILERS MUCH EASIER!



TWIN 8" SOLID WHEEL SWING UP JOCKEY WHEEL
THIS JOCKEY WHEEL CAN BE WELDED OR BOLTED



4 BOLT SWIVEL BRACKET (suited to 50mm, 75mm and 100mm a frames)



SOLID 22MM FORK

PLASTIC HANDLE

CAN BE WELDED OR SUPPLIED WITH U-BOLTS

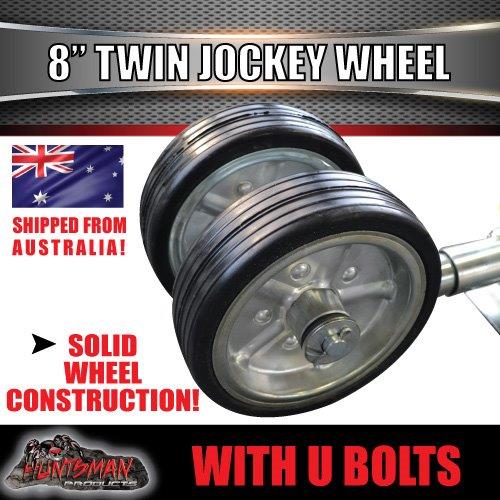

SOLID WHEELS

HARDENED RUBBER OUTER TYRES

RUBBER MOULDED HANDLE



height from centre of bracket to bottom of tyre

fully closed 380mm

fully extended 633mm



Height from middle of bracket to top of handle: 220mm

Overall Length closed: 600mm

Travel: 253mm



UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE HUNTSMAN BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY

U BOLTS WITH SPRING WASHER AND NUTS INCLUDED TO SUIT 75MM X 50MM A FRAME OR DRAW BAR



RATED AT 1200KG (BALL WEIGHT)

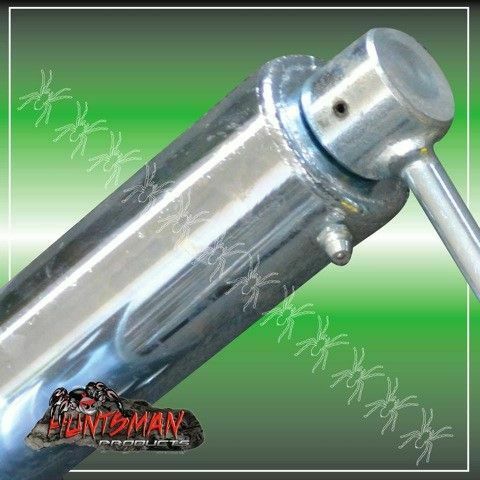

FULLY GREASABLE
