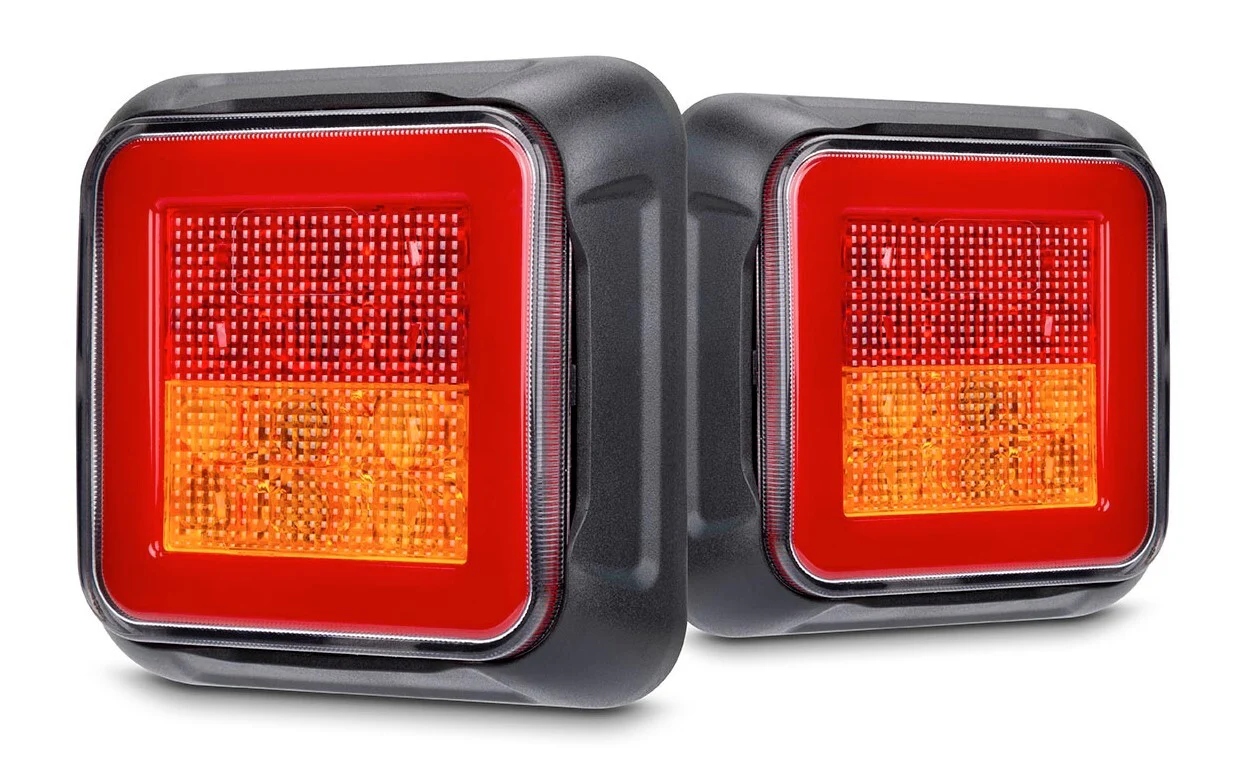

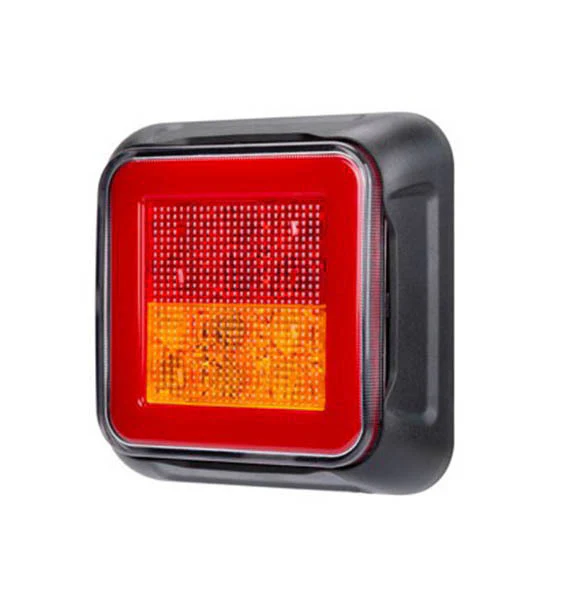

x2 Roadvision LED Rear Combination Tail Light 100x100mm Stop/Tail/Ind BR81LR

ROADVISION LAMPS

BR81 SERIES



ROADVISION’s BR81 Series compact trailer lamps! The complete all-in-one fit and forget solution. Roadvision’s super bright LED combination lamps deliver the durability of maintenance free LED technology and greater visibility providing increased safety. Roadvision’s BR81 Series are the complete all in one solution with Stop, Tail & Indicator all in the one lamp. The BR81 Series combination lamps produce more light output than incandescent lamps, whilst drawing a fraction of the current. Couple this with unbreakable polycarbonate lenses and an extremely tough housing manufactured from high impact ABS, these lamps are weather resistant and totally maintenance free, with a life span rated at 100,000 hours. With ROADVISION it’s FIT and FORGET.



price is for 2 lights



FEATURES:

Compact LED combination lamp

Glow park light

Continuous light diffusion

10-30V DC input & low current draw

Brighter than conventional incandescent systems

100,000 hour LED life span with solid state technology

Maintenance free

High impact ABS housing & sealed polycarbonate lens

Water and dust proof

Pre-wired with 250mm of sheathed tinned copper cable

Simple surface mount design

ADR/ECE approved for all functions



RANGE SPECIFICATIONS

Description: Square Stop/Tail/Ind

Functions: Stop/Tail & Indicator

Voltage Input: 10-30V DC

Number of LED's: Indicator - 6 LED's, Stop - 6 LED's, Tail - 16 LED's

Current Draw Amps, Ind - 0.05A @ 13.8V, S/T - 0.1/0.1A @ 13.8V

Dimensions AxBxC: 100x100x28mm

Lens Construction: Polycarbonate

Housing Construction: High Impact ABS

Mounting Hole Centre: 45mm Stud Centres

Cable Length: 250mm Tinned Copper

Wiring Colour Codes: Earth - White, Stop - Red, Tail - Brown, Indicator - Green or Yellow

ADR Approval: Ind - E9-6R-0122457, S/T - E9-R1/S1-0222457

CTA Approval: CTA-061137
